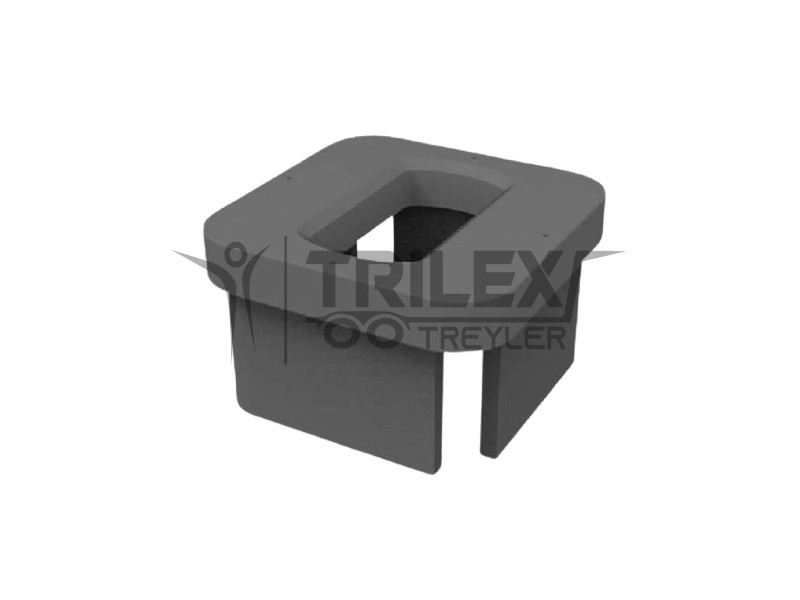

Single Raised Foundation / ISO Deck Socket

Single raised foundation (also called raised single ISO container foundation or single raised ISO deck socket) is a weldable and raised deck socket that used to secure the containers to the deck of the vessel for provide a secure locking position for ISO shipping containers on ships.

Single raised foundation is welded onto the deck of a vessel. Commonly used with 110mm height but also preferrable as 65mm to 160mm height.

Single raised foundation is used with ISO bottom twist-locks (manual twist-locks, semi-automatic twist-locks, turn foot d-rings and other suitable twist-locks).

Attention: These foundations cannot be used in combination with mid-locks at bottom tier or in combination with lashing plates.

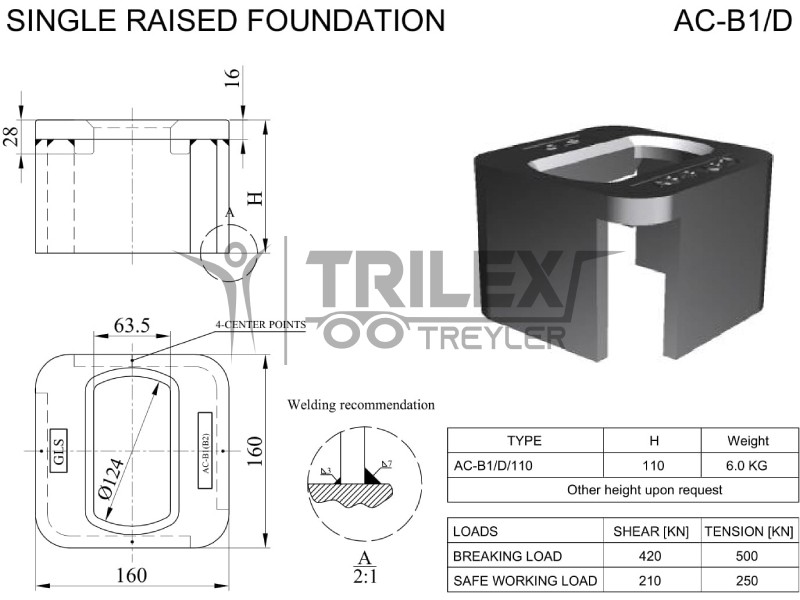

"Single Raised Foundation / ISO Deck Socket - AC-B1/D or FE-72-1" - Technical Drawing

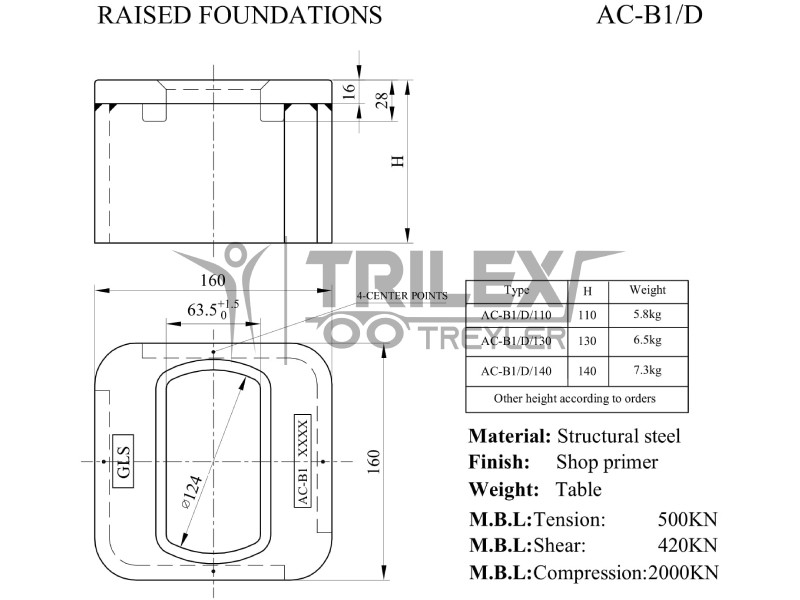

"Single Raised Foundation / ISO Deck Socket - AC-B1/D - 110-140" - Technical Drawing
