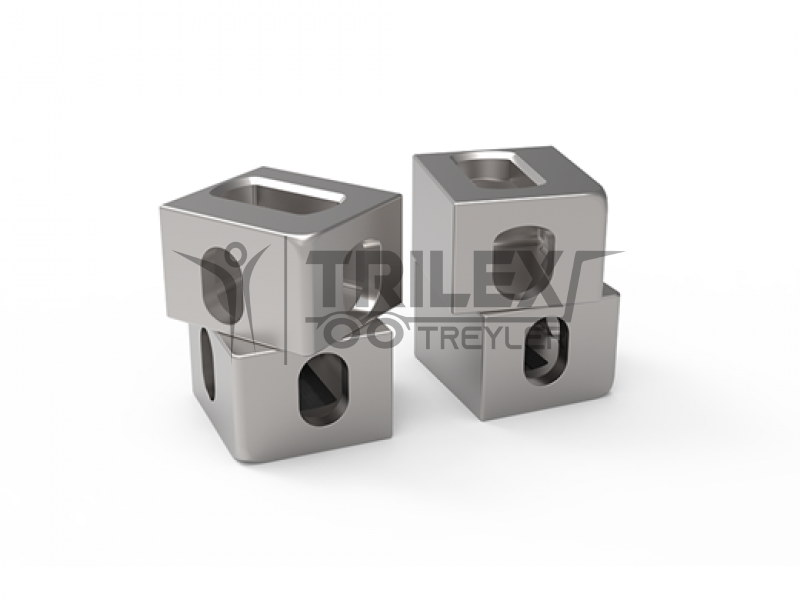

Container corner casting fitting slot is preferred for all kind of container like ship containers, tank containers or load containers. Container corner fittings are the cast container lock slots that enable containers to be connected to each other and are also used as lifting bracket. It enables containers to be stacked, positioned, loaded and fixed on decks and platforms.
Container
corner casting fitting slot / bracket;

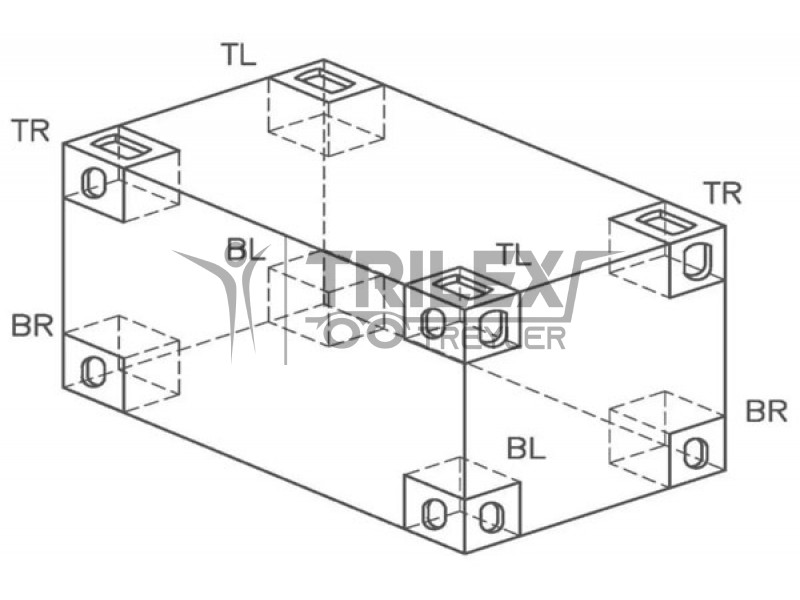

- Top Left (TL) / Bottom Left (BL) - 4 unit totally for front and rear side
- Top Right (TR) / Bottom Right (BR) - 4 unit totally for front and rear side
Standard set is consisting
of 8 pcs for 1 container
*
*
-

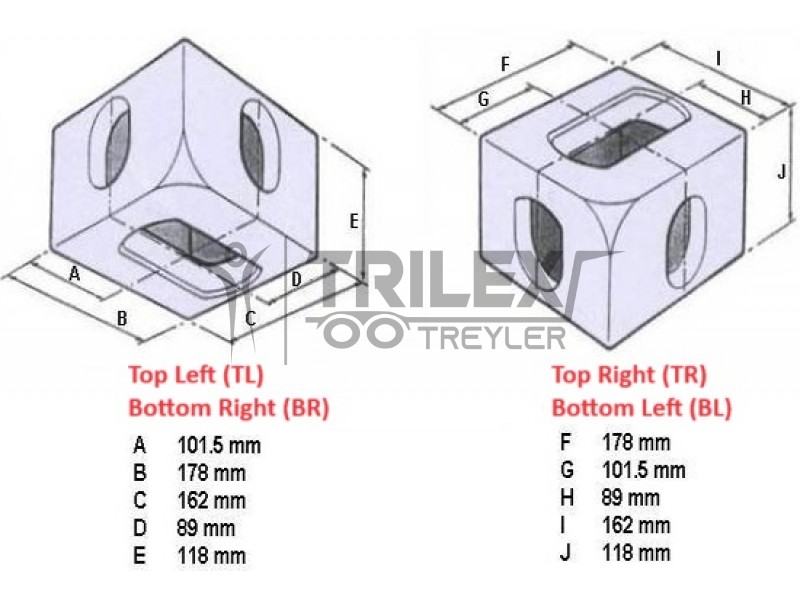

Sizes: 178mm (W) x 162mm (L) x 118mm (H)
* Türkiye made
product/s is determined according to only "Right
and Left" layout
* Türkiye made
product/s; there isn't "TL - BL" or "TR - BR" sequence.
So, measurements vary
-
Material: Steel Casting / GS-52 / Spheroid Casting (Alloy
Material) / Aluminium
-
Capacity: 34.000 kg (Maximum Permissible Mass)
* For 34.000 kg,
at least 4 twist locks shall be used, one for each corner
-
Certificate
(China Made): ABS certified
(No: SQ6145018-C) and compliance with ISO 1161
Certificate
(Türkiye Made):
UN / ECE Reg. -
Scope of Approval: ADR 2017 (item 6.8.2.1.2) - Test No: 18-04083-GCS-00
ISO 1161:2016
Certified and Test Report Number: 22-00306-MBT-TR-00
-
Surface
Treatment: Raw / Painting
-
Weight: 11 kg/pcs
-
Packing: 100 pcs are packed in one pallet (1,1 ton), 2000 pcs
in one 20 ft container (22 ton)
* If there is no orderly
stacking, it can be packed in various ways
- Application: Ship container, tank container, dry cargo container, refrigerated container, folding container, open top container, mobile home, steel structure, etc…
"Container Corner Casting" - Brochure"Container Corner Casting" - Technical Drawing (China Made)
"Container Corner Casting" - Technical Drawing (TÜRKİYE Made)
