P40 Hydraulic Directional Control Valve Single Handle

info@trilex.com.tr

+90 543 692 62 76

Mon. - Sat.: 08:30 - 18:00

Back to Last Page

Tags: P40 hydraulic directional control valve , P40 directional control lever , P40 lever operated directional control valve , p40 monoblock hydraulic directional control valve , P40 hydraulic flow control valve

Description

Description:

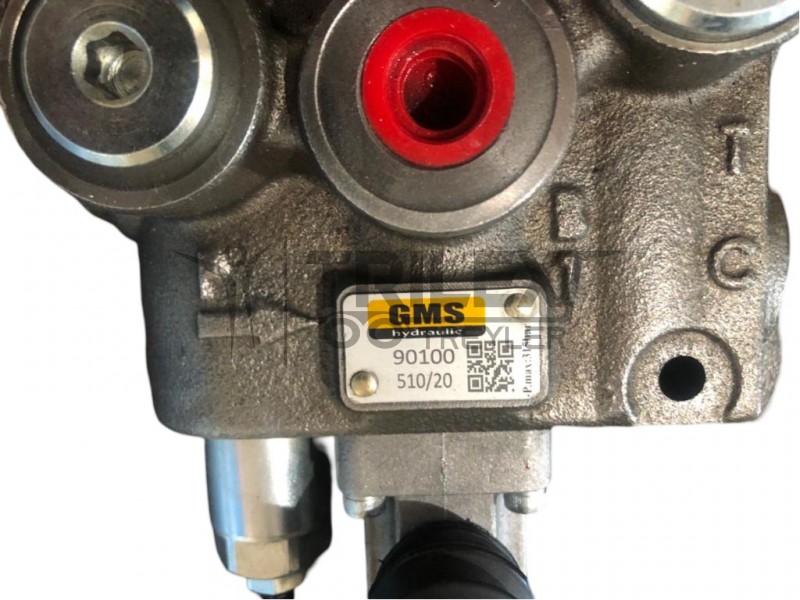

P40 hydraulic directional control valve single handle (also called 1P40 hydraulic flow control valve) has 1 control lever and 40 litter/minute capacity.

1P40 is works 100% compatible with all hydraulic equipment. It is easily integrated into systems with quick connection fittings. It is long-lasting with its fast response time, continuous working feature, heat and pressure resistant special design and offers advantageous use by reducing your cost expenses. It is compatible with harsh working conditions in environments.

Code Number	1P40
Control	Single control lever
Hydraulic Flow	40 l/min
Max. Working Pressure (A,B Line)	300 bar
Max. Working Pressure (P Line)	250 bar
Max. Working Pressure (T Line)	50 bar
Max. Return Pressure	25 bar
Thread Size	½”
Operating Environment Temp.	-40°C - +60°C
Hydraulic Oil (Fluid)	‘No 68’ hydraulic oil * or equivalent
Max. Hydraulic Oil Temperature	-15°C - +80°C

E-Mail: info@trilex.com.tr

WhatsApp / Viber: +90 535 440 04 78 (For only spare parts...)

* TRILEX TREYLER is a foreign trade company and the main supplier company is BÜYÜKYÜKSEL DAMPER HİD. MAK. SAN. LTD. ŞTİ. (Trademark Name: SEMITURK)

Related Products

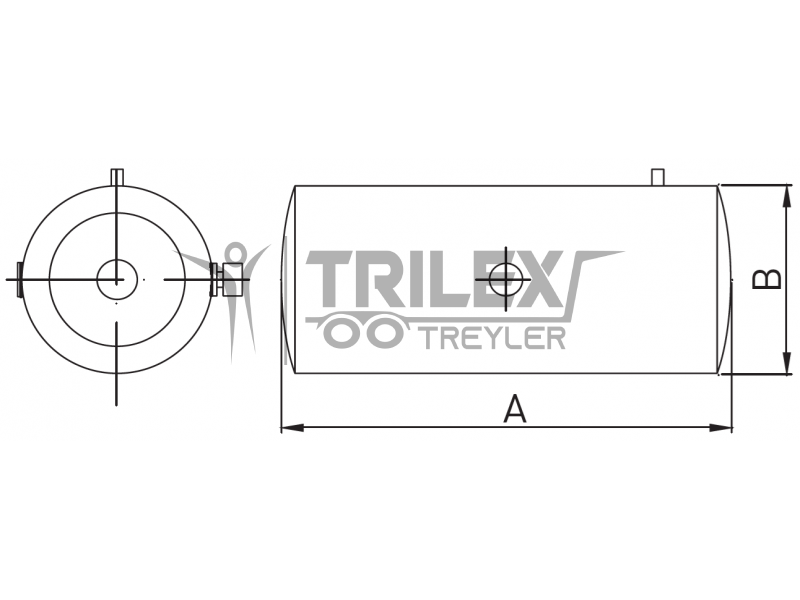

Hydraulic Oil Tank 120 - 150 - 180 Liter / Cylindrical

Hydraulic oil tank / reservoir is a storage unit for truck or tractor trailers that allows the fluid needed for the system to be stored and supplied t..

Hydraulic Flow Divider (OT200 Series)

Hydraulic flow divider (also known as flow control valves) ensures that the oil flow is distributed equally at 2 different outlets in hydraulic syst..

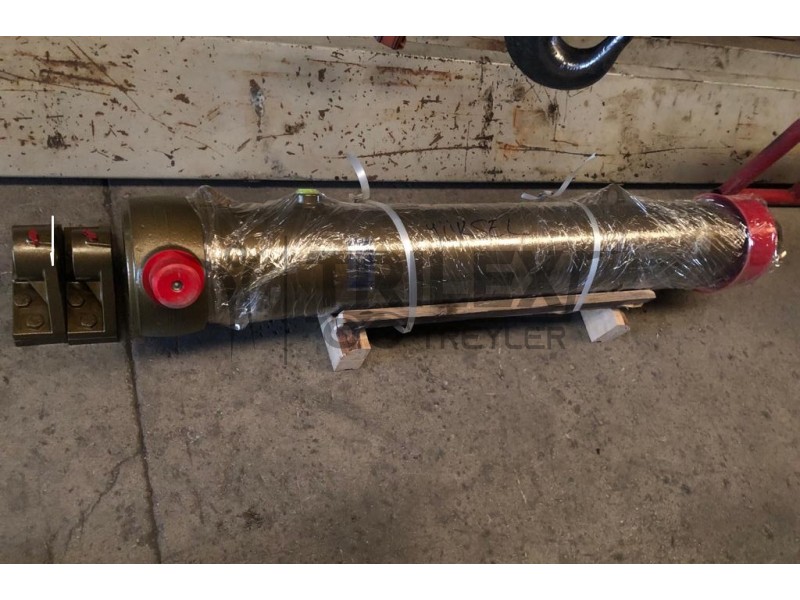

Tipper / Dumper Telescopic Hydraulic Cylinder with Bracket (S5500)

5 stage telescopic hydraulic cylinder with bracket for tipper / dumper (also called tipper hydraulic cylinder or front end telescopic cylinder) is d..

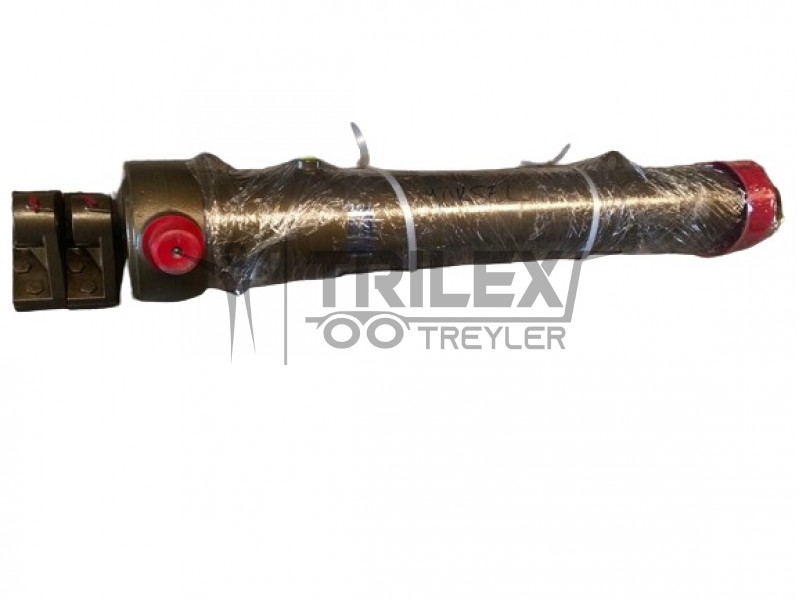

Tipper / Dumper Telescopic Hydraulic Cylinder with Bracket (S7000)
