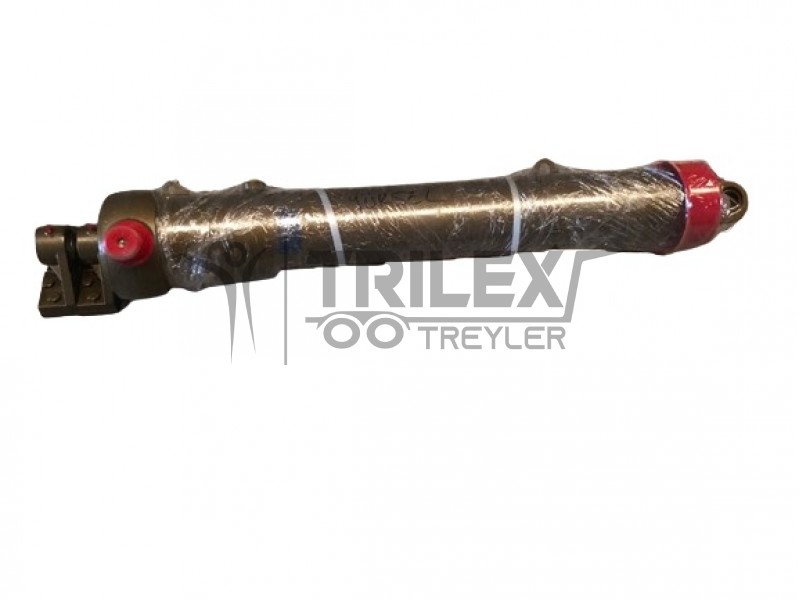

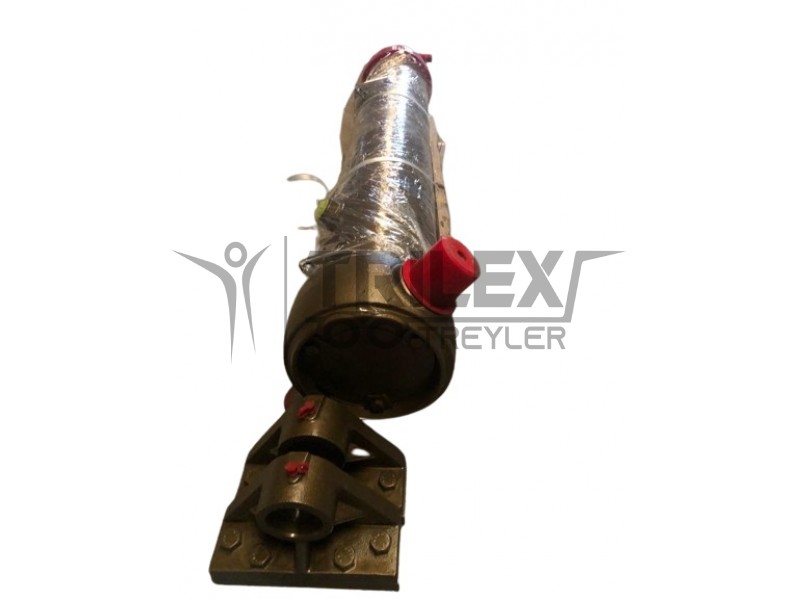

5 stage telescopic hydraulic cylinder with bracket for tipper / dumper (also called tipper hydraulic cylinder or front end telescopic cylinder) is designed as hydraulic lift usage for tipper (truck trailer) and dumper. It can be easily mounting semi-trailer or truck chassis with mounting bracket.

We can supply products with different diameter and stroke options. We supply for any type hydraulic cylinder for trailer, tipper (truck trailer - semi-truck) and any dump structure. The lifting capacity of hydraulic cylinders depends on their tube diameters, cylinder tube strokes and oil pressure.



A

:  245 mm

B

68 mm

C

295 mm

D

:  60 mm

E

130 mm

H

100 mm

L

:  1730 mm

S

:  41 mm



Technical Specification of “5 stage telescopic hydraulic cylinder for tipper / dumper”:

-          212 x 5 x 7000 - Effective Diameter x Stage x Stroke

-          Outer tube diameter - 245 mm (ØA), Head diameter - Ø50 (GE 50)

-          Length: closed length 1730 mm (L) + 7000 mm stroke

-          Oil displacement - 210 dm³

-          Approximately weight -  450  kg ± %5

-          All cylinder materials are ST-52 cold drawn tubes

-          Hard chromed all stages

-          Working pressure - 160 bar

-          Max. working pressure - 180 bar

Stage

1

2

3

4

5

TOTAL

Effective Dimeter (mm)

Ø212

Ø185

Ø160

Ø135

Ø116



Stroke (mm)

1400

1400

1400

1400

1400

7000

Oil Displacement (L)











210

Thrust at 160 Bars (Tons)

40

34

24

18

12,5





"Tipper / Dumper 5-Stage Telescopic Hydraulic Cylinder" - Technical Drawing

"Tipper / Dumper 5-Stage Telescopic Hydraulic Cylinder Bracket" - Technical Drawing
