Twist lock retractable “with 38 and 52 mm type (or big and small type options)” (also called container twist lock, trailer container lock and twist
locks for trailers) are used on trailers to secure the container to the trailer
via the container corner slot
Retractable twist lock for container chassis
and trailers different versions of fully retractable twist locks for ISO
containers and swap bodies are available depending on the design requirements
of the transport vehicle
It is common practice for the corner castings of a container to rest on the twist locks at the ends of the trailer. The twist lock lever then needs to be rotated enough to secure it. This basic safety measure will ensure that the container is secured at all four corners and remains attached to the trailer throughout the journey
MODELS:

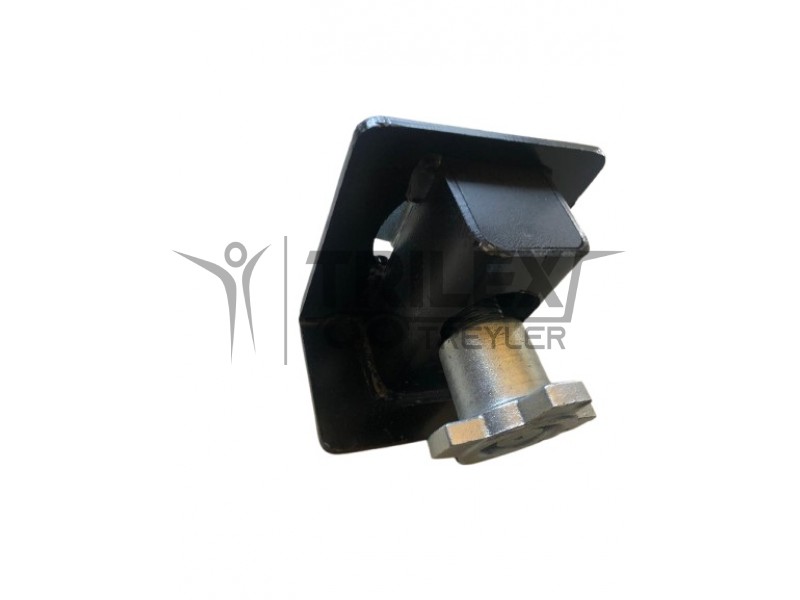

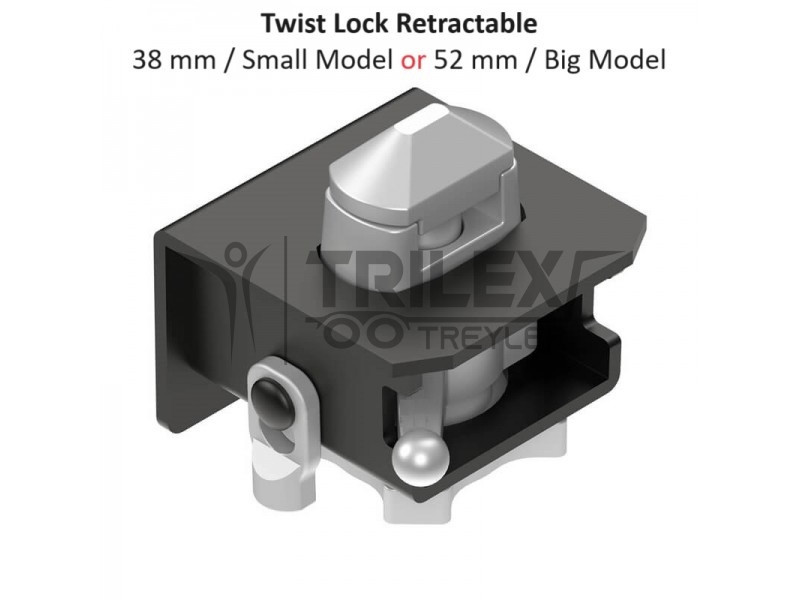

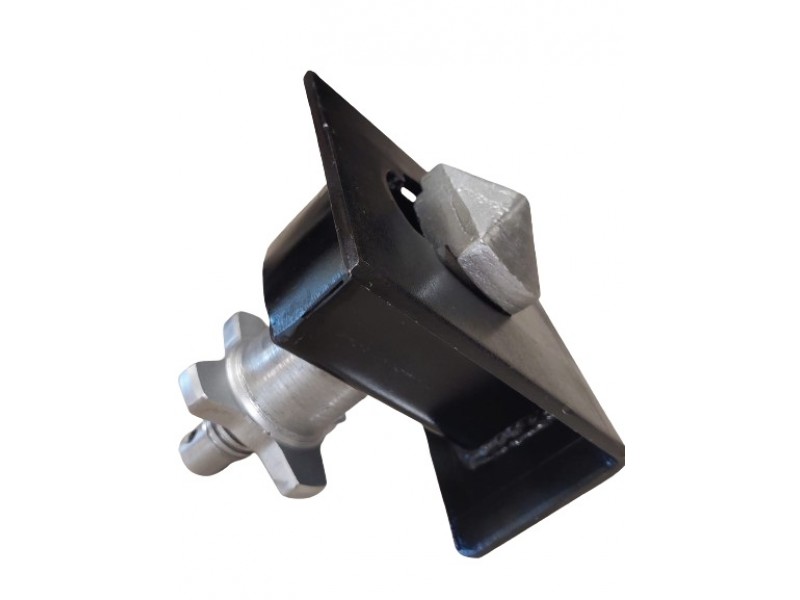

TX-SA-STTL-38: 38 mm Twist Lock Retractable (Small Model)
TX-SA-STTL-52: 52 mm Twist Lock Retractable (Big Model)

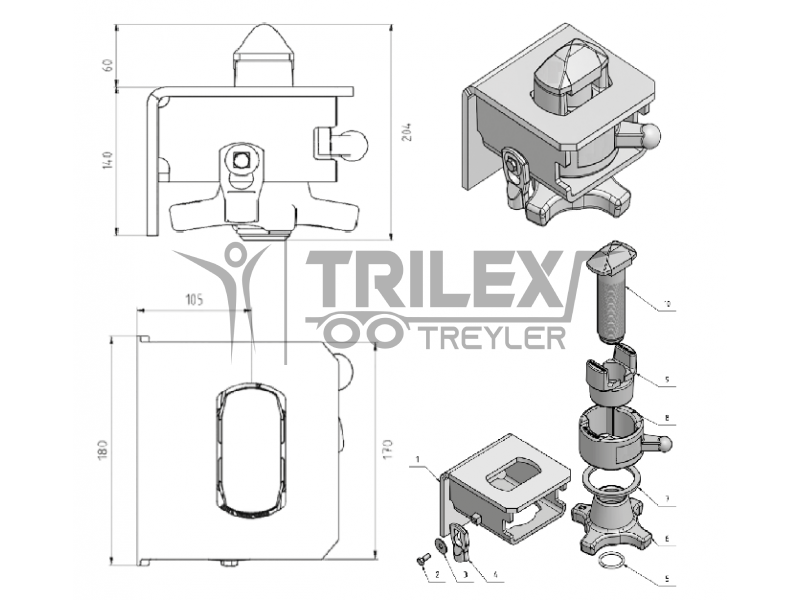

Pos. | Single part |
1. | Housing right / left |
2. | Screw M8x16 |
3. | Safety washer |
4. | Security latch |
5. | Security ring |
6. | Locking nut |
7. | Safety washer |
8. | Outer guide |
9. | Locking pin guide |
10. | Locking pin |
E-Mail: info@trilex.com.tr
WhatsApp
/ Viber: +90 530 610 1432 (For only spare parts...)
* TRILEX TREYLER is a foreign trade company and the main supplier company is BÜYÜKYÜKSELDAMPER HİD. MAK. SAN. LTD. ŞTİ.(Trademark Name: SEMITURK)
Tags: twist lock retractable, trailer container lock, trailer twist locks, container twist lock, jost type container lock, retractable twist lock for container chassis and trailers, twist locks for flatbed trailers
