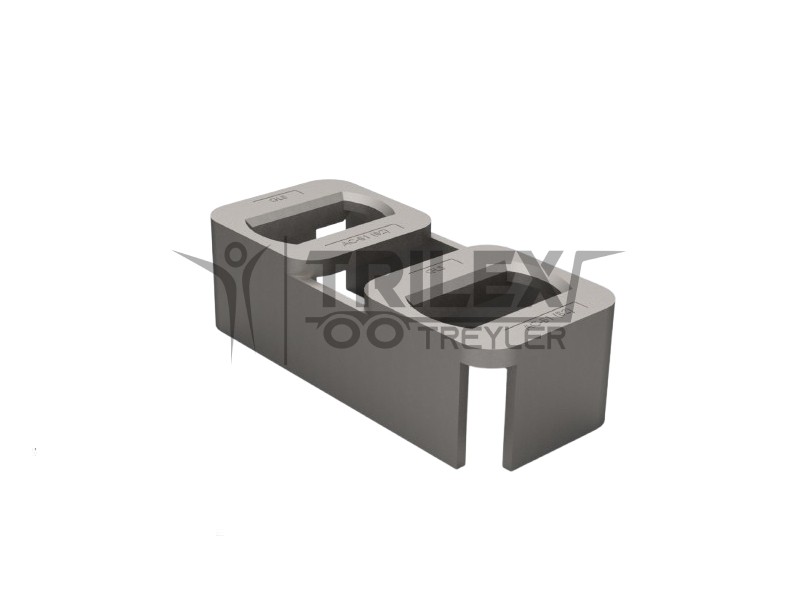

Double Raised Foundation / ISO Deck Socket

Double raised foundation (also called double raised longitudinal ISO deck socket, raised double ISO foundation transversal or container double flush foundation ISO socket) is a weldable and raised deck socket that used to secure the containers to the deck of the vessel for provide a secure locking position for ISO shipping containers on ships.

Double raised foundation is welded onto the deck of a vessel. Commonly used with 110mm height but also preferrable as up to 160mm. There are transverse and longitudinal models. The technical drawing of the product offered as a reference is attached. You must specify the reference you request from the 3 different size (centre points: 203 - 216 - 258mm) combinations presented in the technical drawing. It is recommended to contact for other models.

Double raised foundation is used with ISO bottom twist-locks (manual twist-locks, semi-automatic twist-locks, turn foot d-rings and other suitable twist-locks).

Attention: These foundations cannot be used in combination with mid-locks at bottom tier or in combination with lashing plates.

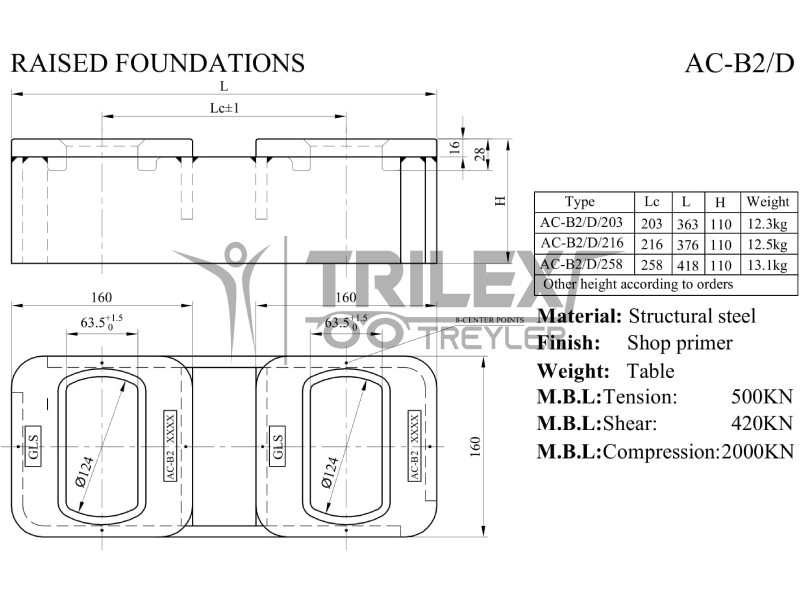

"Double Raised Foundation / ISO Deck Socket - AC-B2/D or FE-72-2" - Technical Drawing
