Cotton Transporter 4 Wagon with Double Semi-trailer
info@trilex.com.tr
+90 543 692 62 76
Mon. - Sat.: 08:30 - 18:00

transportation of raw cotton

4 wagon side tipper semi-trailer

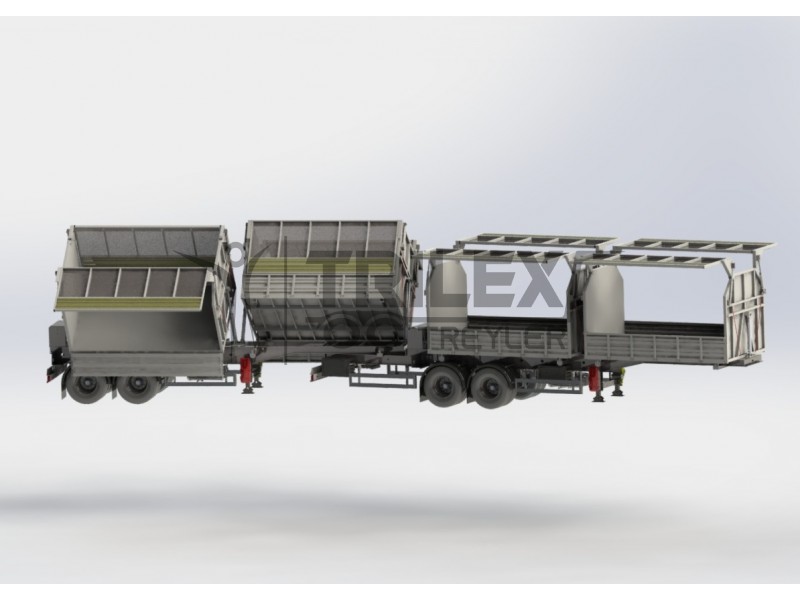

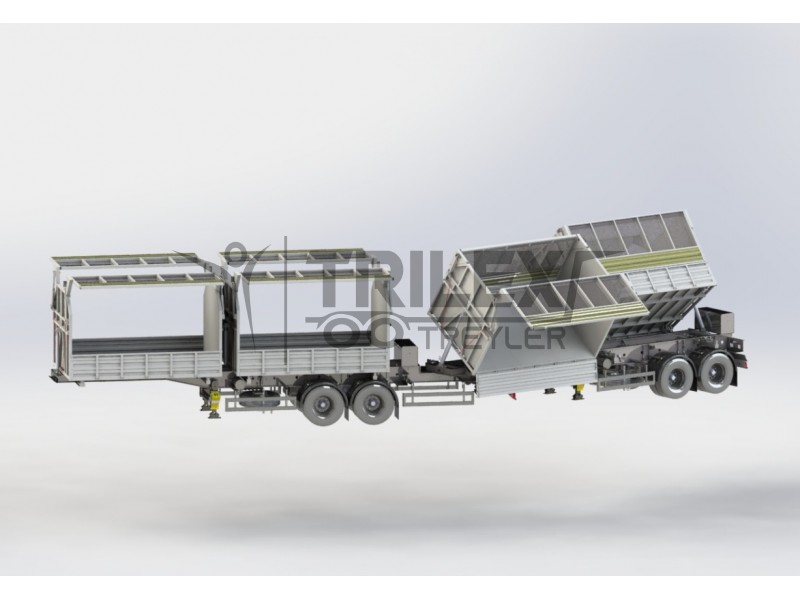

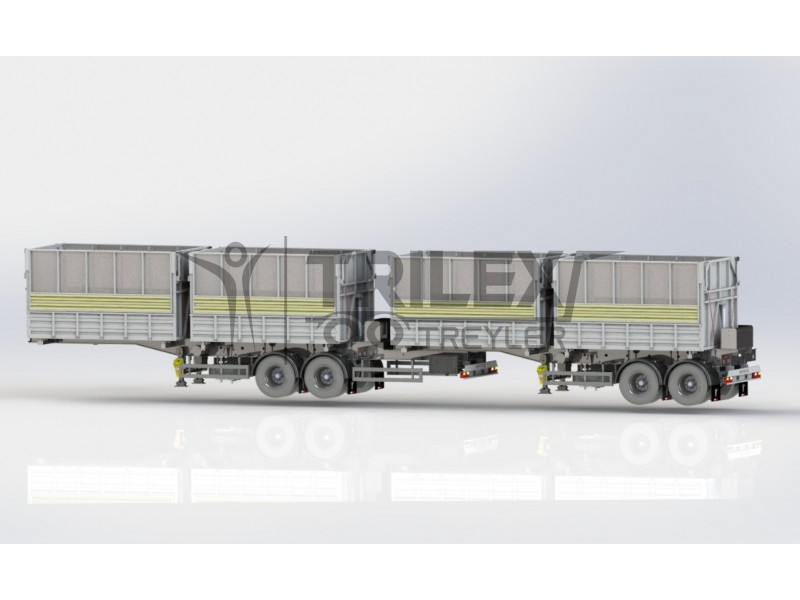

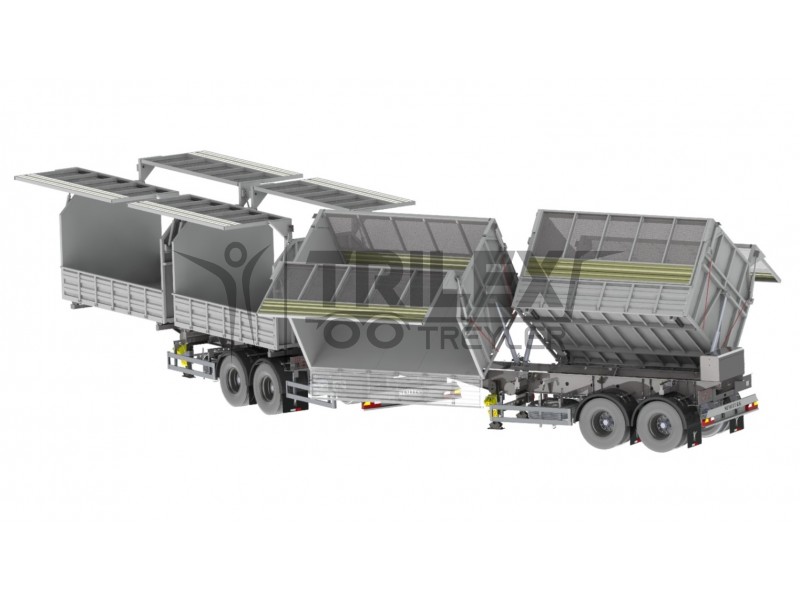

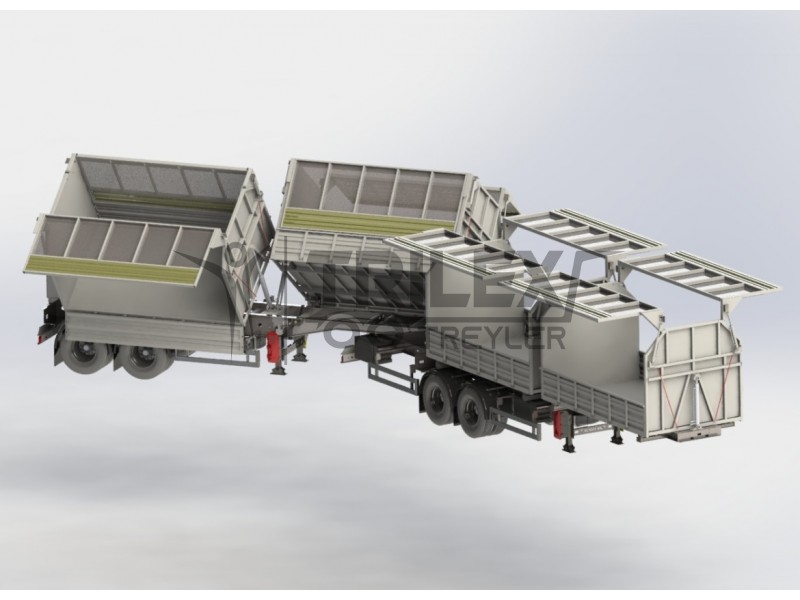

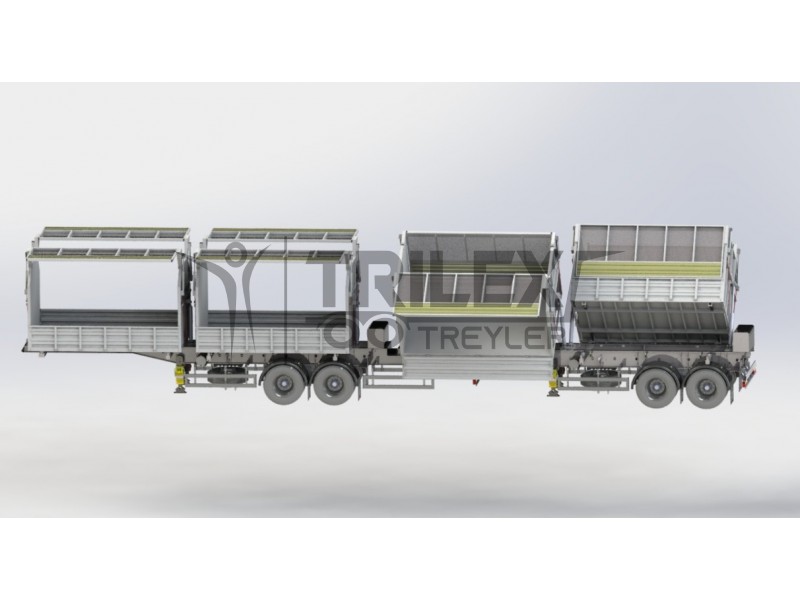

Cotton transporter - 4 Wagon with Double Semi-trailer (also called cotton transport 4 wagon with inter-link double semi-trailer) is designed for transportation of raw cotton purpose.

General technical details of “cotton transporter 4 wagon with double semi-trailer”;

- Totally ≈ 83 m³ usable volume (tare weight is ≈ 15 tons ± %10)

- Chassis and top body are produced from “ST52-3 or optional S700MC” sheet

- 4 unit two side tipping upper baskets (max. 40°)

- Each basket has an internal volume of ≈ 20.67 m³ and maximum tonnage capacity is ≈ 7,50 tons

* Reference; bulk density range of raw cotton 220 - 360 kg/m³

- Basket side tipping mechanisms and opening of upper covers are hydraulically controlled, lower covers are manually controlled (opened)

- Basket side locks are air-controlled mechanism

* For more information, please review the technical drawing of product


Optional Details:

- Design with any specifications and sizes to compatible with customer requirement or usage

* Please take into account local and/or international traffic regulations

* Tare weight varies depending on design combinations

- Aluminium top body and reinforced special chassis design for lightweight

- Multiple basket placement combinations with interlink/ train connected chassis design

- Optional basket design combinations (any volume, any type side cover and side cover opening mechanism designs)

- Other compatible axle, tire and suspension system combinations

* Please contact with us for any information


"Cotton Transporter 4 Wagon with Double Semi-trailer" - Brochure

"Cotton Transporter 4 Wagon with Double Semi-trailer" - Technical Drawing


E-Mail: info@trilex.com.tr

WhatsApp / Viber: +90 543 692 6276 (Mr. Ahmet - M.Sc. Mechatronics Engineer)

TRILEX TREYLER is a foreign trade company and the manufacturer is BÜYÜKYÜKSELDAMPER HİD. MAK. SAN. LTD. ŞTİ. (Trademark Name: SEMITURK)
