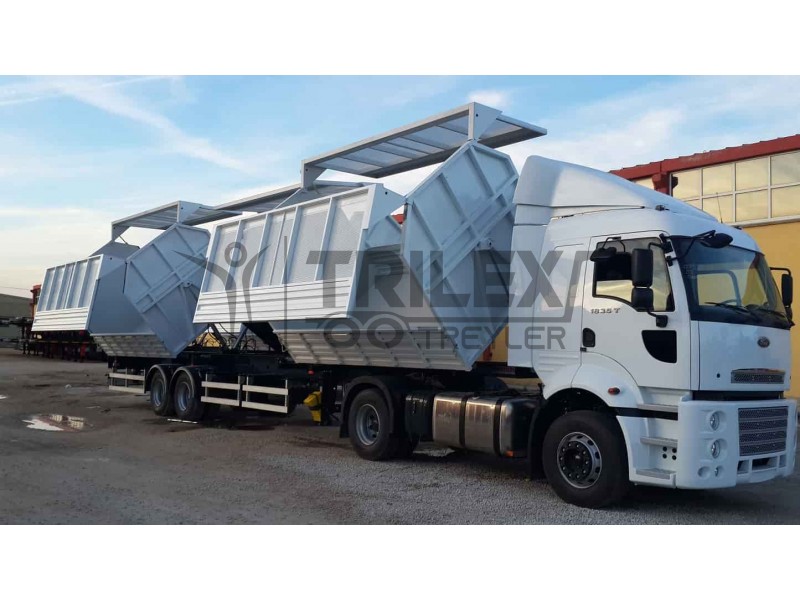

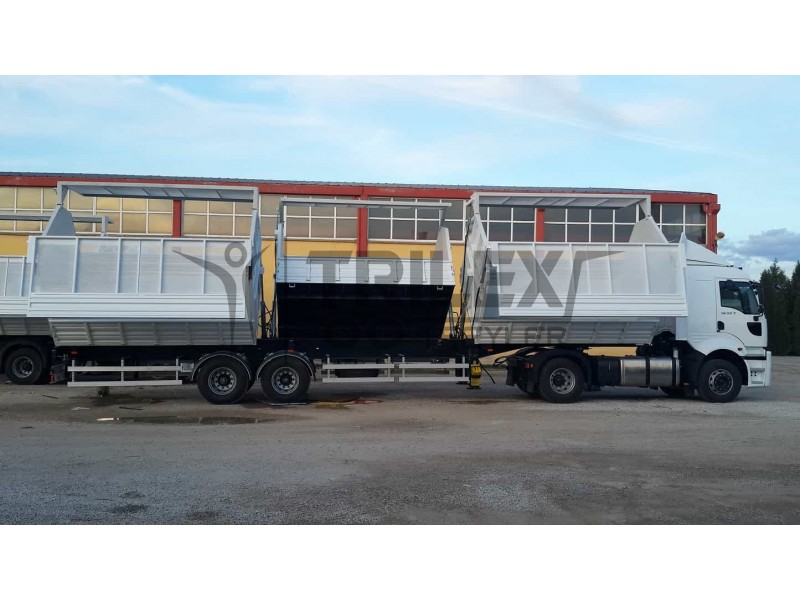

Cotton transporter - triple wagon side tipper semi-trailer (also called
side dump trailer or dropside tipper trailer) is designed for transportation of
raw cotton purpose.
General technical details of “cotton transporter -
triple wagon side tipper semi-trailer”;
- Totally ≈ 62 m³ usable volume (tare weight is ≈ 11 tons ± %10)
* Local traffic regulations of one of Asian countries were taken into
account on design combination
- Chassis and top body are produced from “ST52-3 or optional S700MC”
sheet
- 3 unit two side tipping upper baskets (max. 40°)
- Each basket has an internal volume of ≈ 20.67 m³ and maximum tonnage
capacity is ≈ 7,50 tons
* Reference; bulk density range of raw cotton 220 - 360 kg/m³
- Basket side tipping mechanisms and opening of upper covers are
hydraulically controlled, lower covers are manually controlled (opened)
- Basket side locks are air-controlled mechanism
* For more information, please review the offer and
technical drawing of product
Optional Details:
- Design with any specifications and sizes to compatible with customer
requirement or usage
* Please take into account local and/or international traffic
regulations
* Tare weight varies depending on design combinations
- Aluminium top body and reinforced special chassis design for lightweight
- Multiple basket placement combinations with interlink/ train connected
chassis design
- Optional basket design combinations (any volume, any type side cover
and side cover opening mechanism designs)
- Other compatible axle, tire and suspension system combinations
* Please contact with us for any information
