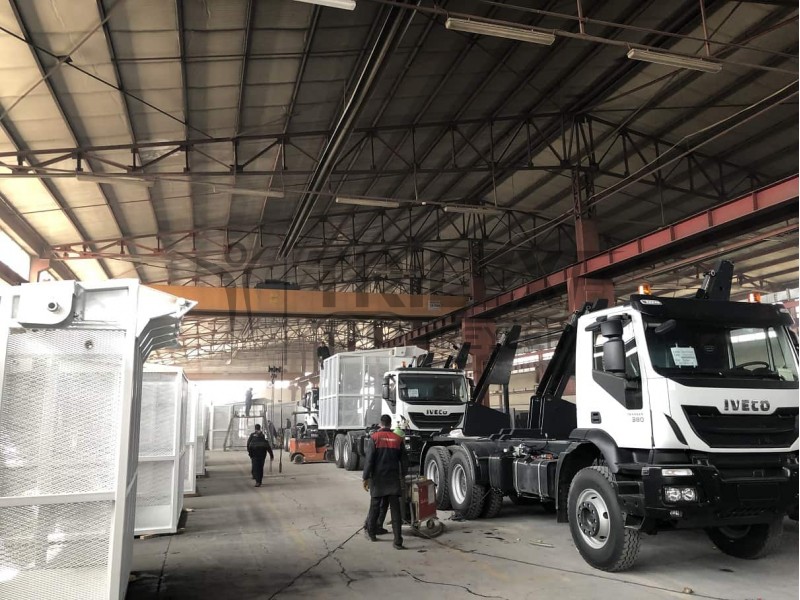

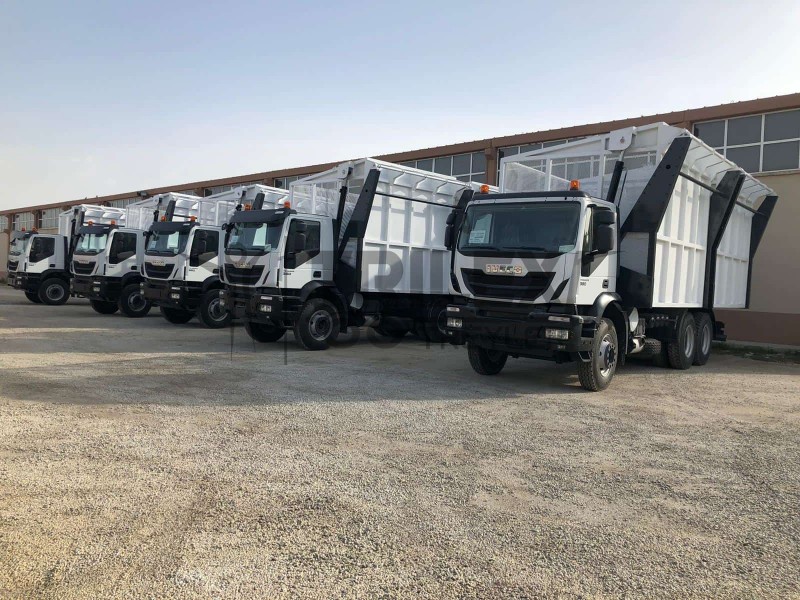

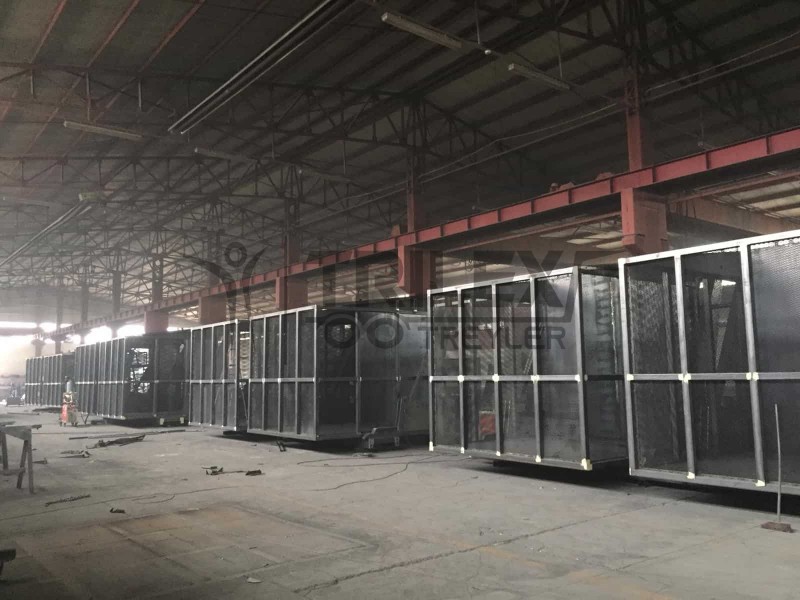

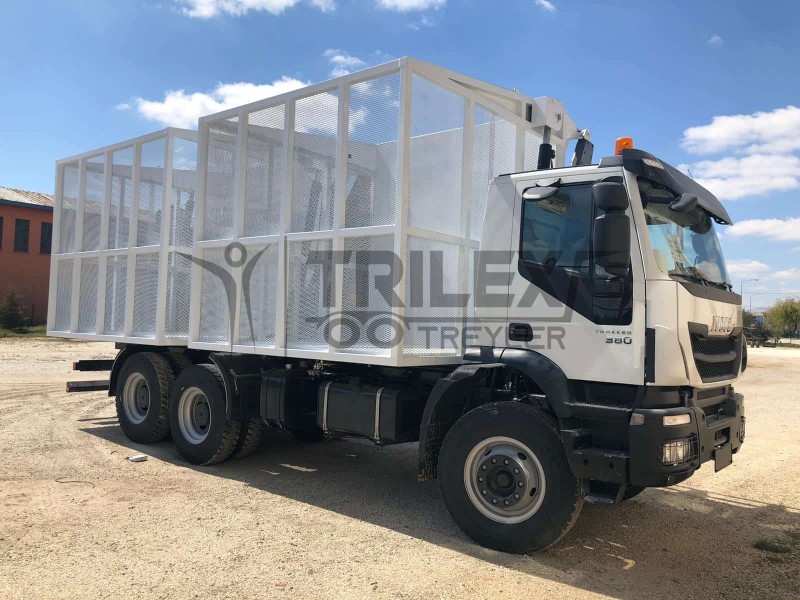

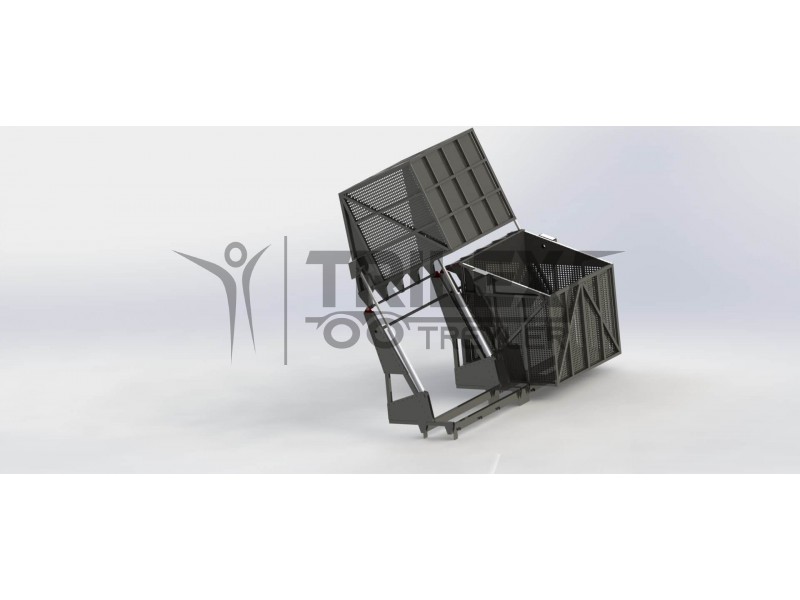

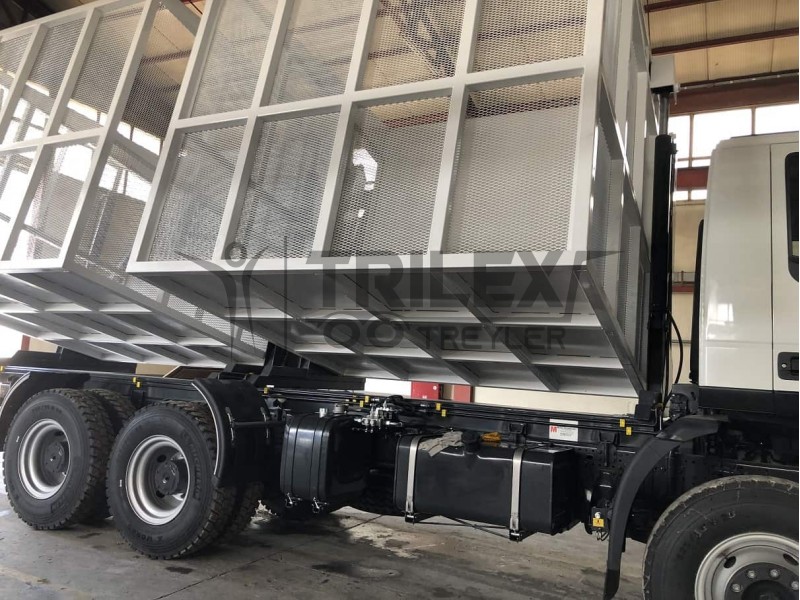

“High Dump Forage Wagon” equipment (also called “sugar cane transport
equipment”, “high lift dump box”, “high lift dump cart” or “side cane carting
bins”) is designed as high side tipper unloading system. It can be preferred
for transporting various products. For
example; sugar-cane, raw cotton, peat moss, any silage harvesting group
products, any type bulk cargo and waste products.
-
Installation: On truck chassis or other vehicle chassis (Refer to
B.2. item of brochure)
-
Capacity: 6 tons, optional 8 and 10 tons capacity
options
* Equipment capacity depends on design and
manufacturing variables
* In capacity selection, the density of the product to
be transported and the requested equipment volume should be taken into account
-
Material: High-strength sheet metal or optional
aluminium (for light weight design)
-
Volume: 24,63 m³ (22,88 + 1,75 m³) cubic meters usable volume
(when full loaded)
-
Width
x Length x Height:
3400 x 3530 x 3119 mm (Dimensions of each basket)
-

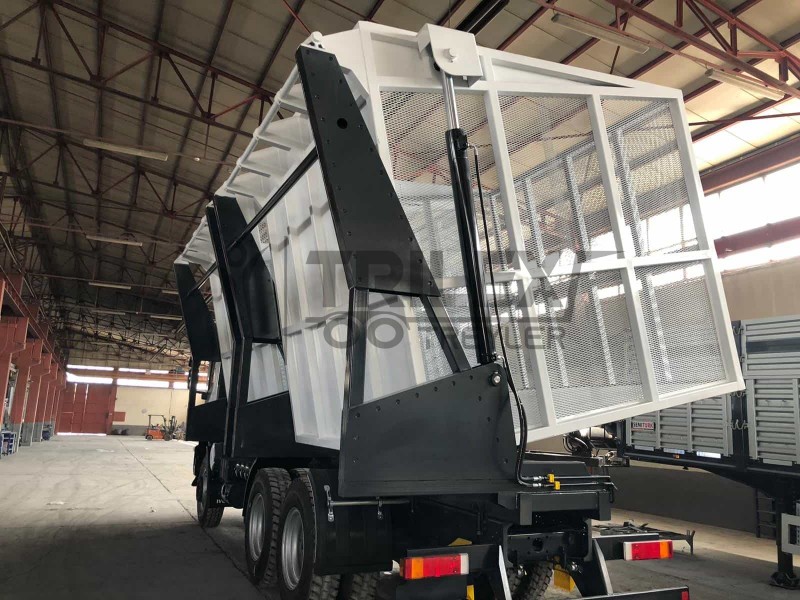

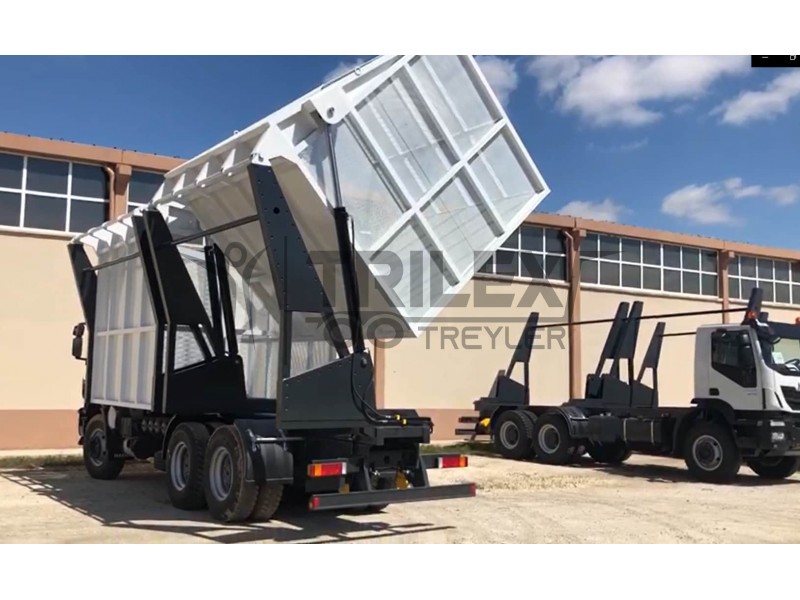

Tipping
Mechanism: With 2 hydraulic
cylinders (Optional 4)
-
Hydraulic
Driven: By prime mover
(truck/tractor) PTO (power take-off) compatible hydraulic pump
-
Control
of Baskets: It will be
directed by a hydraulic arm (hydraulic directional control valve) and can also
be controlled from the cabin
* For more information, please review the brochure,
offer and technical drawing of product
Other
Details;
-
Unless
specified externally in the contract, equipment installation on prime mover
will be done by the buyer. Installation instruction will be provided by seller
-
If
assembly is not included; hydraulic pump, oil tank and PTO and all other
connections related to the vehicle will be provided by buyer
-
Flow
divider and similar hydraulic equipment are determined according to the vehicle
- equipment combination based on some optional features
-
The
operating speed of the product depends on the prime mover PTO revolution and
hydraulic pump flow rate
* Please contact with us for any information
“High Dump Forage Wagon” | “High Lift Dump Cart / Box” video:
https://www.youtube.com/watch?v=dN5ijFVkajQ
https://www.youtube.com/watch?v=VCSbBcAaee8
Optional
design for trailer or any type truck chassis:
-

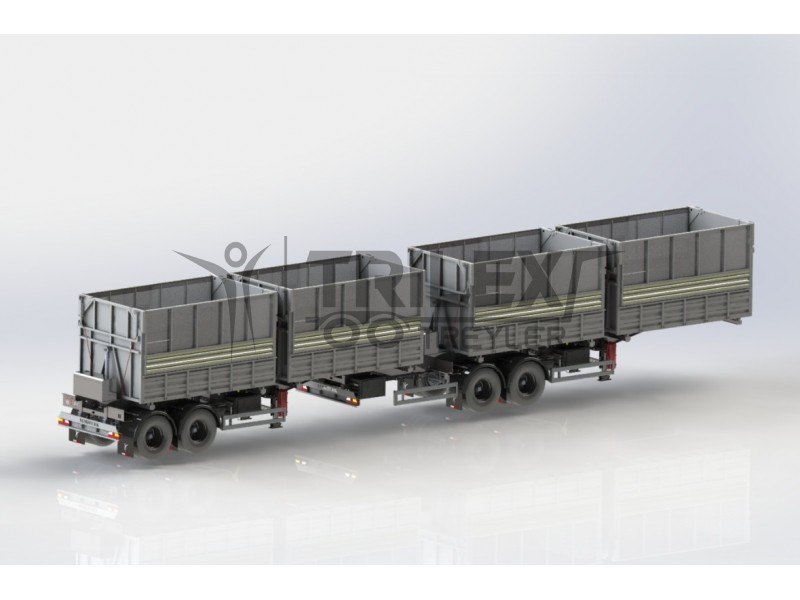

Trailer
combination design (design according to planting area or intended use)
-
One
or any more basket equipped mechanism for any type truck / prime mover chassis

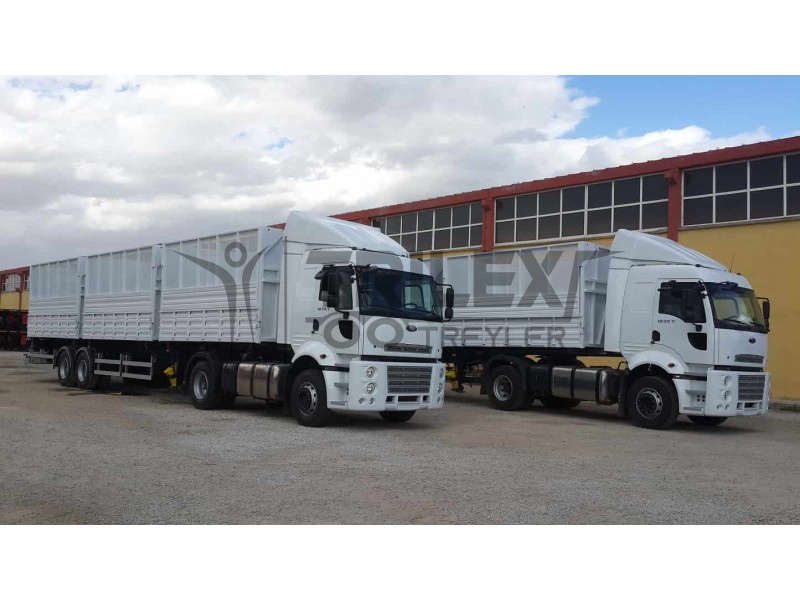

- Other alternative sugar-cane transport equipment design options for the
semi-trailer
"Sugar-cane Transport Side Tipper Equipment | High Dump Forage Wagons" - Brochure
"Sugar-cane Transport Side Tipper Equipment | High Dump Forage Wagons" - Details
"Sugar-cane Transport Side Tipper Equipment | High Dump Forage Wagons" - Technical Drawing
