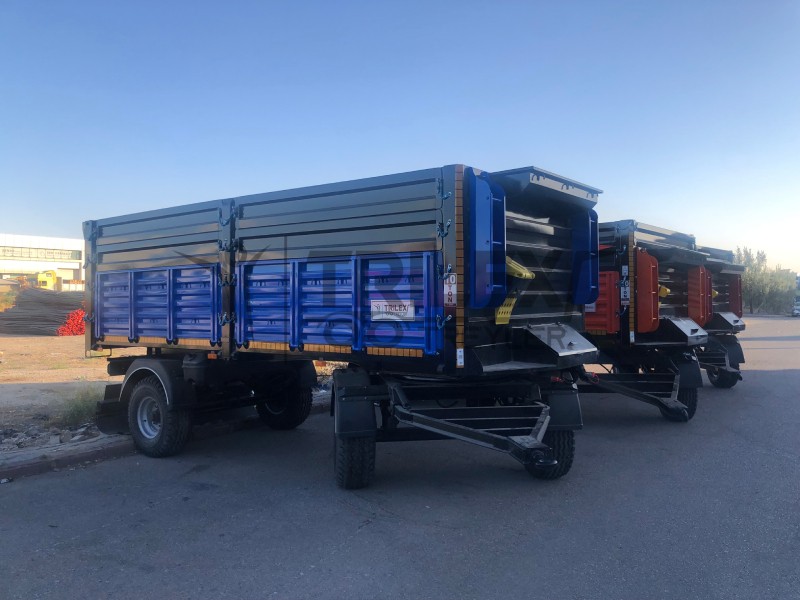

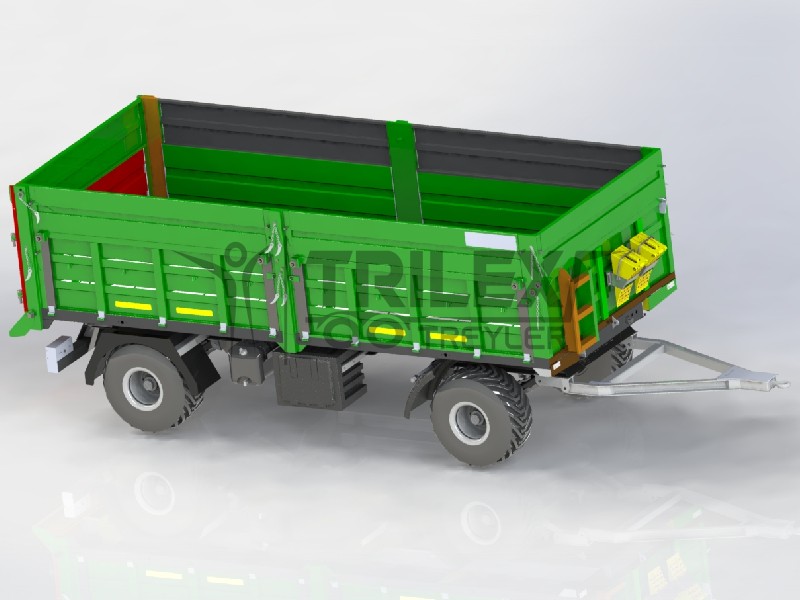

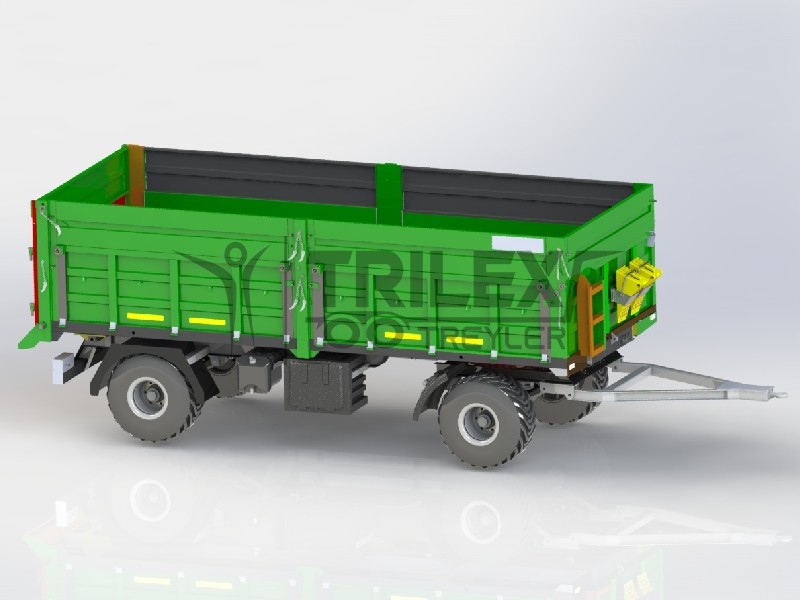

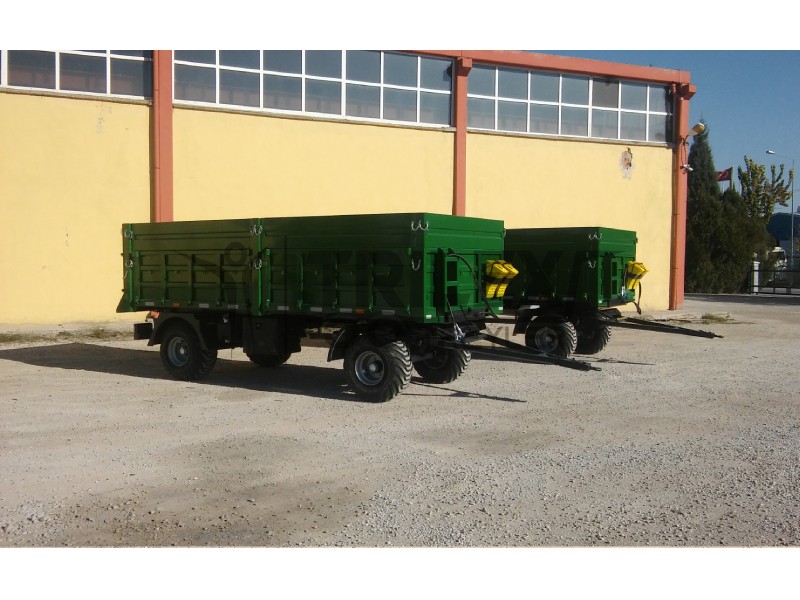

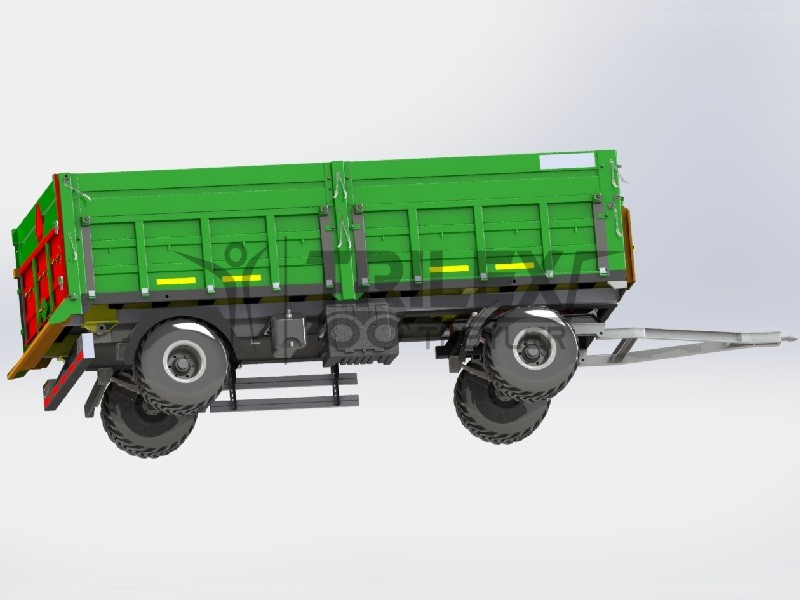

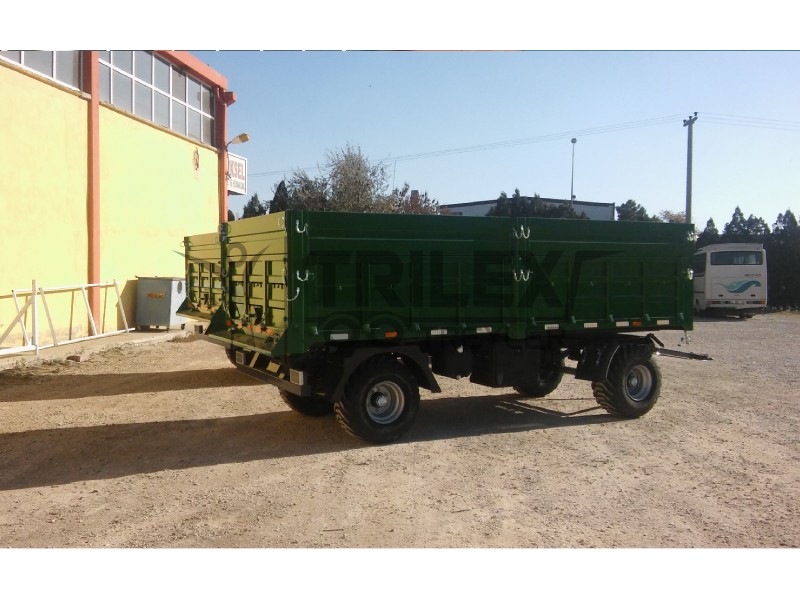

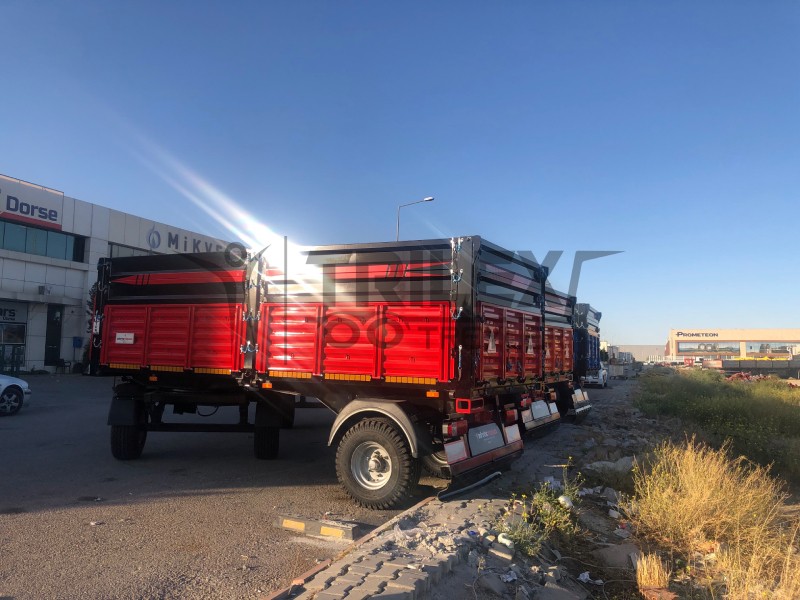

10 tons capacity double / 2
axle agricultural / farm turn-table tipper trailer (farm tipper trailer with
rotating drawbar, double axles rear tipping trailer with rotary arrow or 10
tons double axle back tilt trailer) is designed as a for all kinds of use for agricultural purposes. We can also
produce agricultural trailer solutions in all sizes and technical
specifications to suit customer needs.
General technical details
of “10 tons double axle turntable tipper trailer (heavy chassis)”;
- Standard Product:
2200 mm (W) x 5100 mm (L) x 2175 mm (H) - Tare Weight ≈ 2,5 Tons ± %5
* On trailer design, the
combination of usage requirement and tonnage capacity taken into account
* "Buyer" is
responsible for any problems that may arise due to non-compliance with traffic
regulations regarding dimensions and specifications in special productions
- Rear tipping (back tilt)
type agricultural trailer tipper body
- Chassis is produced from
“ST52-3 or optional S700MC” sheet
- 2 axle as set (13 tons
capacity, 100x100 square profile, 6 bolts, 300x60 brake lining)
* 1
axle fixed and without brake (11/13 hub) and 1 axle with brake equipped (360/60
drum) in standard combination
- Strengthened rotating
table (rotating drawbar / rotary arrow) equipped with ⌀110 trailer
swivel type (angle) and 18 tons cap. drawbar eye (towing eye)
- Telescopic hydraulic tipper
cylinder with connecting hoses with hydraulic couplings
- Openable / removable side
cover height is 700 mm, additional gate height is 400 mm
- Base floor sheet is 3 mm,
covers and additional gates sheets is 2 mm twisted sheet metal
- Closely spaced (reinforcement)
inside / side chassis cross-members
- Mechanically opening rear
cover (optional 2-way opening or optional
hydraulically control)
- 4 units 400/60-15.5 tyre
and 13.00x15.5 rim set
- RAL colour options (can
be chosen in accordance with the tractor brand colour)
* For more information,
please review the brochure and technical drawing of product
Optional Details:
- Design with any
specifications and sizes to compatible with project requirement or usage
* Please take into account
local and/or international traffic regulations
* Tare weight varies
depending on design combinations
- Reinforced special
chassis design and trailer undercarriage combination for heavy loads
- Other compatible axle,
tire, suspension and brake system combinations
- Other design options and
combinations with optional features
- Military trailer
manufacturing options in accordance with NATO standards
* Please contact with us
for any information
