Product Group:Trailers
Product Code: TX-TA-10F2
Availability: Pre-Order

Qty

  • Email

    info@trilex.com.tr

  • Phone

    +90 543 692 62 76

  • Phone

    Mon. - Sat.: 08:30 - 18:00

Contact form

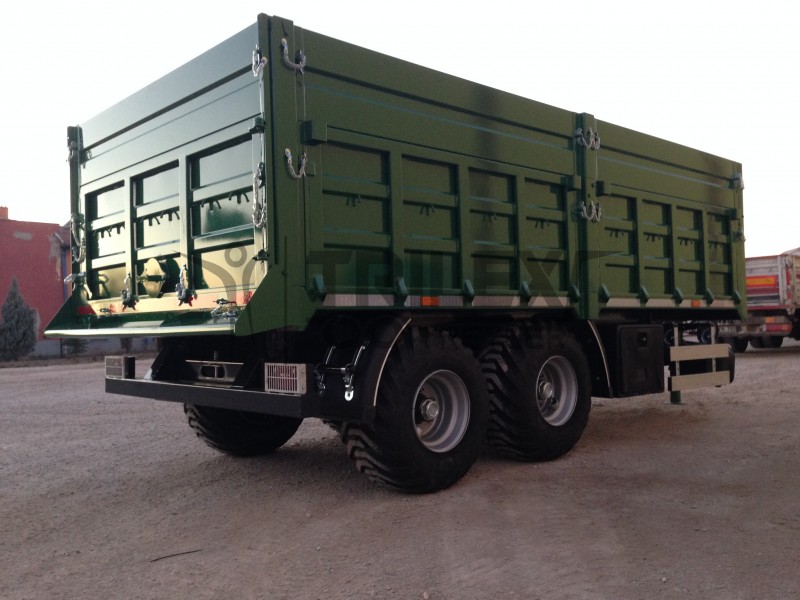

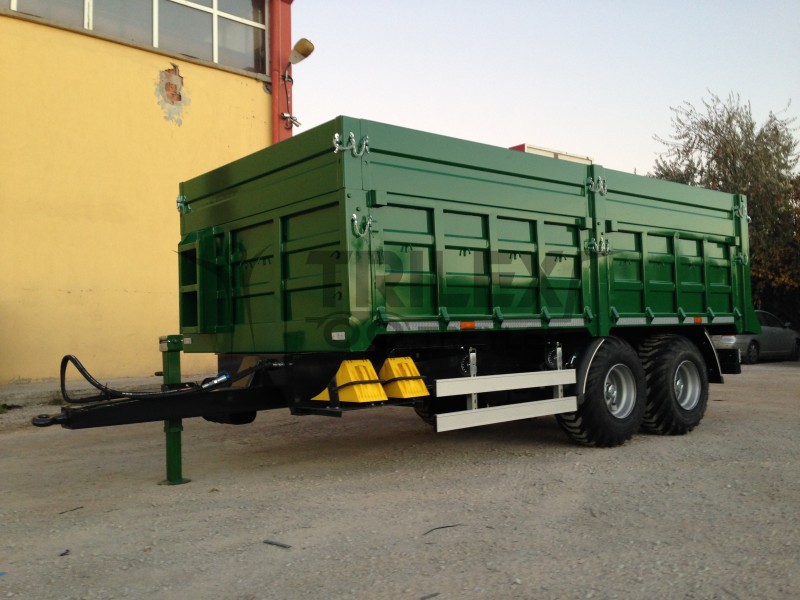

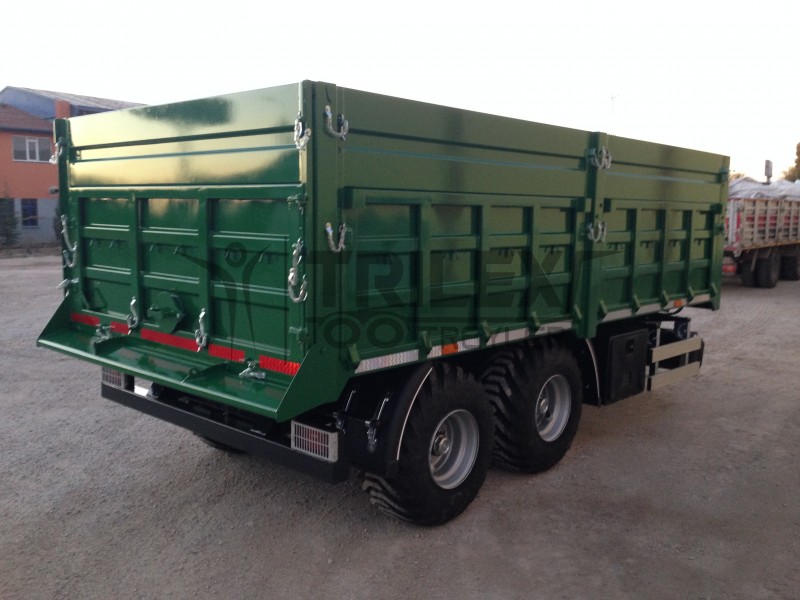

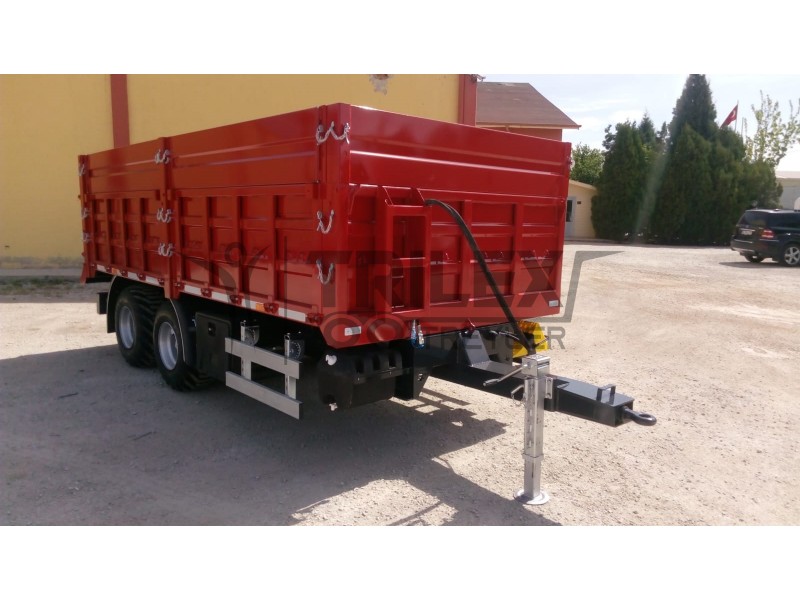

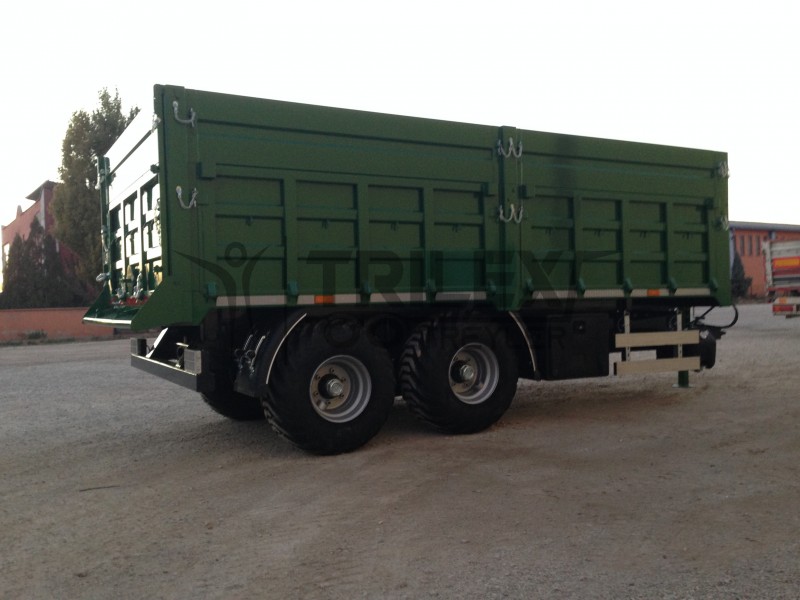

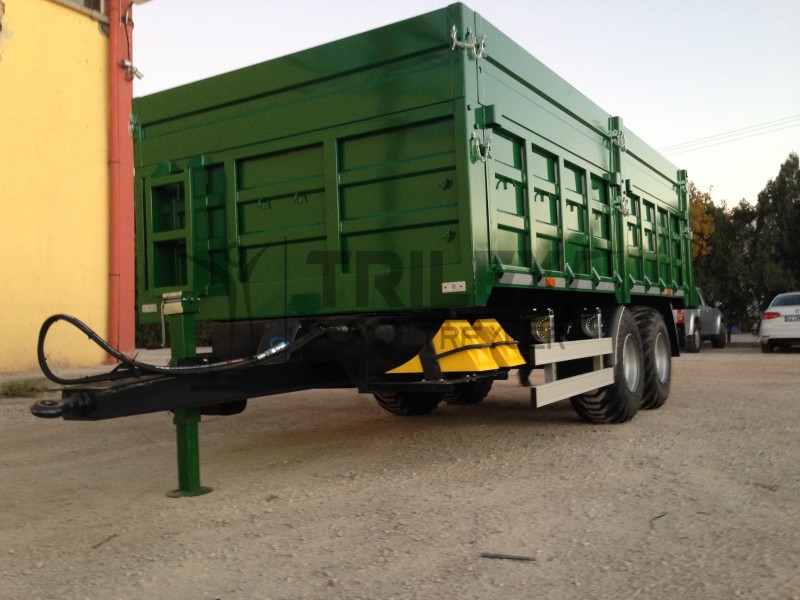

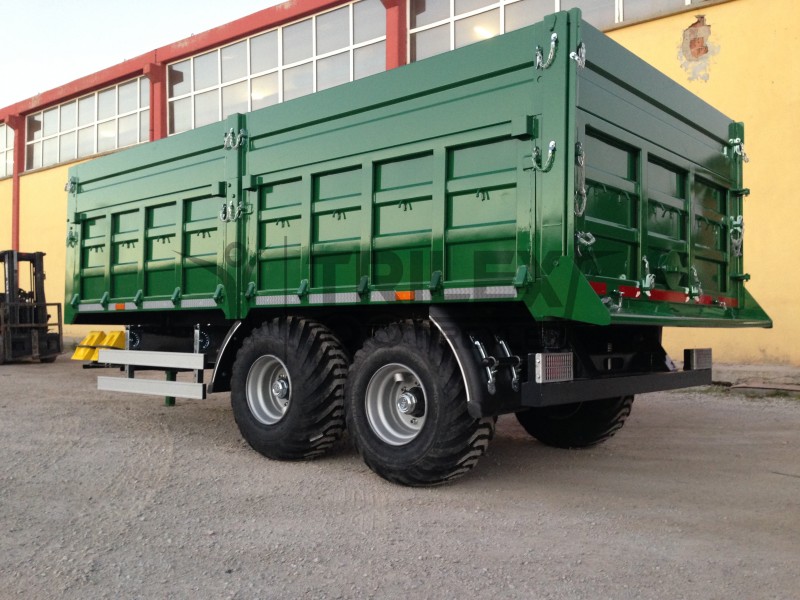

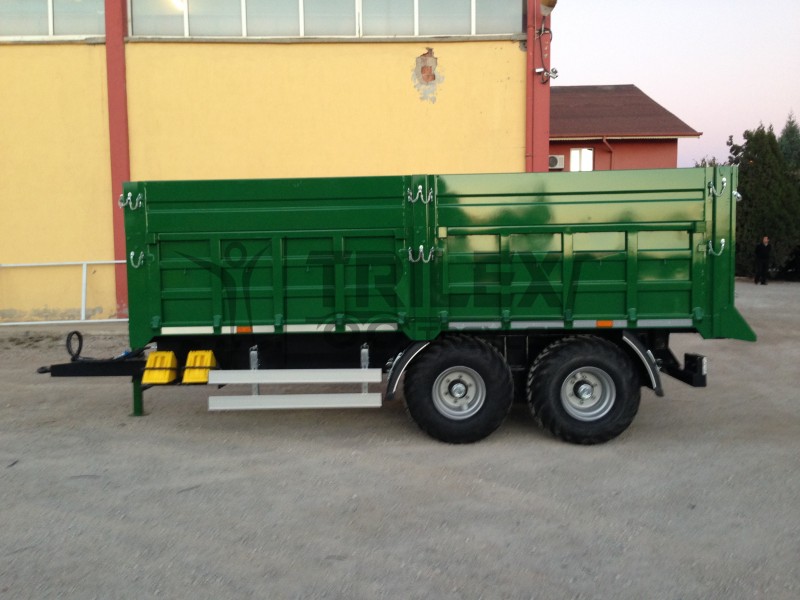

The 10 ton agricultural trailer is a tipper (P.T.O) driven and tandem axle equipped.

Hydraulic equipment and connections are suitable for the tractor with lift mechanism.

The cover height could be 600mm to 1.000mm and the cover attachments are 25 cm.

* Optional three-sided unloading of the tipper basket

E-Mail: info@trilex.com.tr

WhatsApp: +90 543 692 6276

TRAILER PART LIST:

Fixed Axle 11/13 100*100 Profile 6*160*205

Axle with Air Brake 11/13-100 Profile 300/60 Brake Shoe 6*205

Chrome Big Model Lift Brake (Axle Mounted)

Tandem Leaf Spring System 14 Tons Steel 2 KAT Parabolic 2* 1

Tires 400/60-15.5 IMF18 16 KAT PETLAS

Rim 13.00x15.5 Dublex 6 BIJON

Gear Jack - Adjustable - 80*80 mm

Bowl Head 83 MM Q - 18 Tons - 120/40/50

Lift 3 Stage 80 cm 127 mm 10 Ton

Hose 250cm 3/4 fix

Hose 250cm 5/8 fix

Hose 50cm 3/4 with elbow

Hose 38cm 5/8 with elbow

JAK

Stop Lamp (Cargo) 39 * 13 cm

Big Type wheel mounting  / Yellow - with Apparatus

Water Tank Plastic 30 LT

Aluminium Side Barrier (Lateral Protection Device)130 cm

Lateral Protection Device 54cm Short

Truck Tow Apparatus / Steel


E-Mail: info@trilex.com.tr

WhatsApp / Viber: +90 543 692 6276 (Mr. Ahmet - M.Sc. Mechatronics Engineer)

TRILEX TREYLER is a foreign trade company and the manufacturer is BÜYÜKYÜKSEL DAMPER HİD. MAK. SAN.LTD. ŞTİ. (Trademark Name: SEMITURK)
