New Turn-Table Agricultural Tipper Trailer For Sale

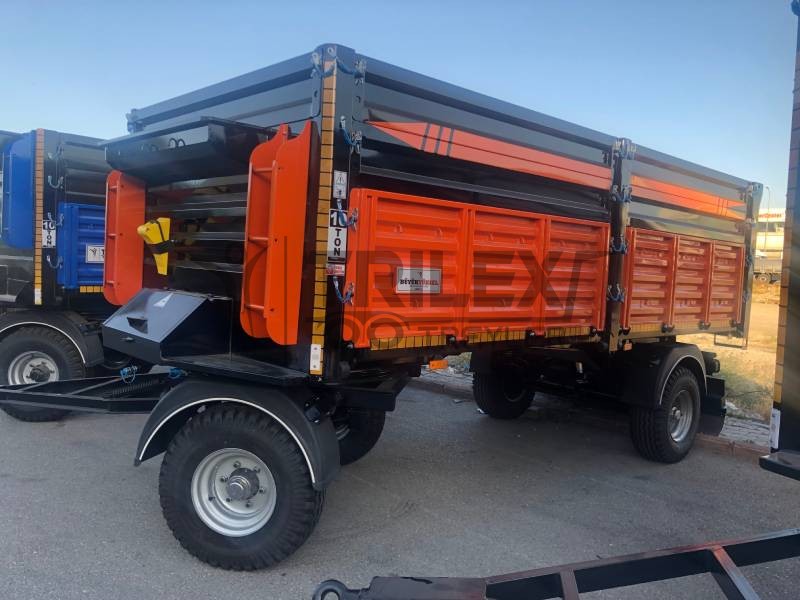

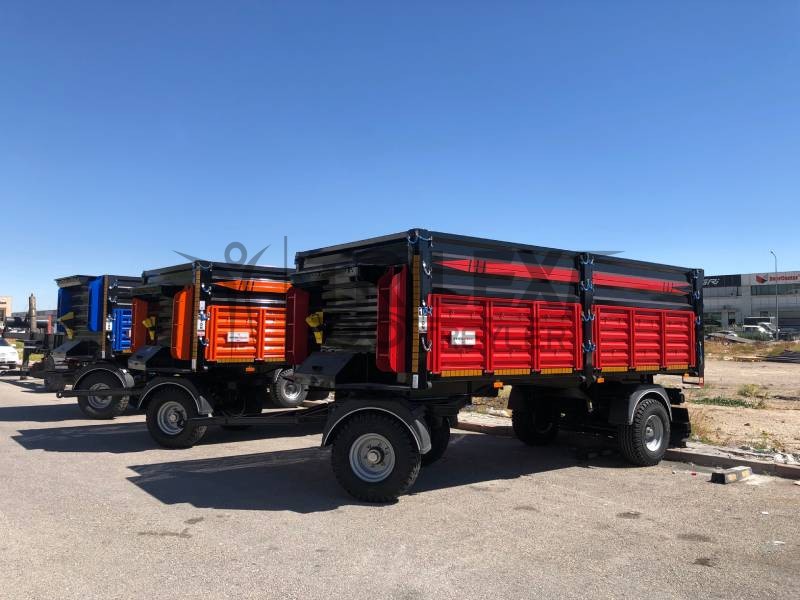

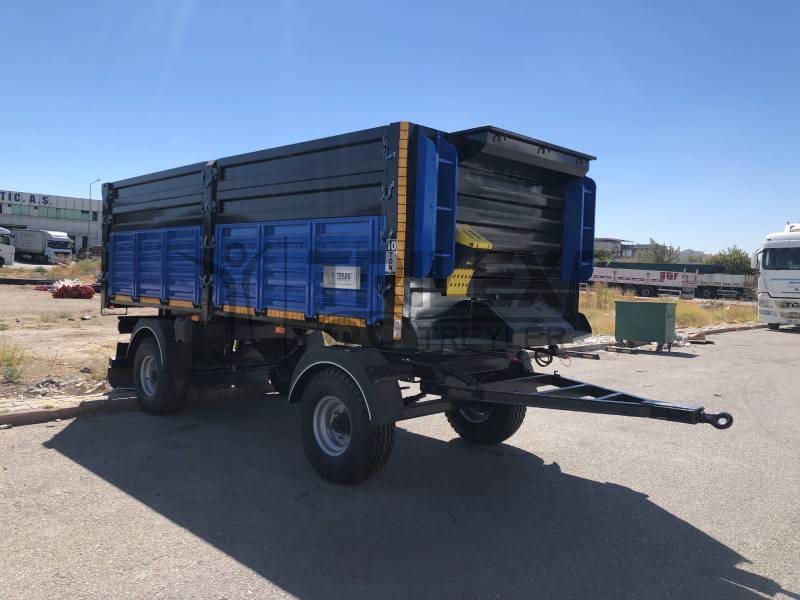

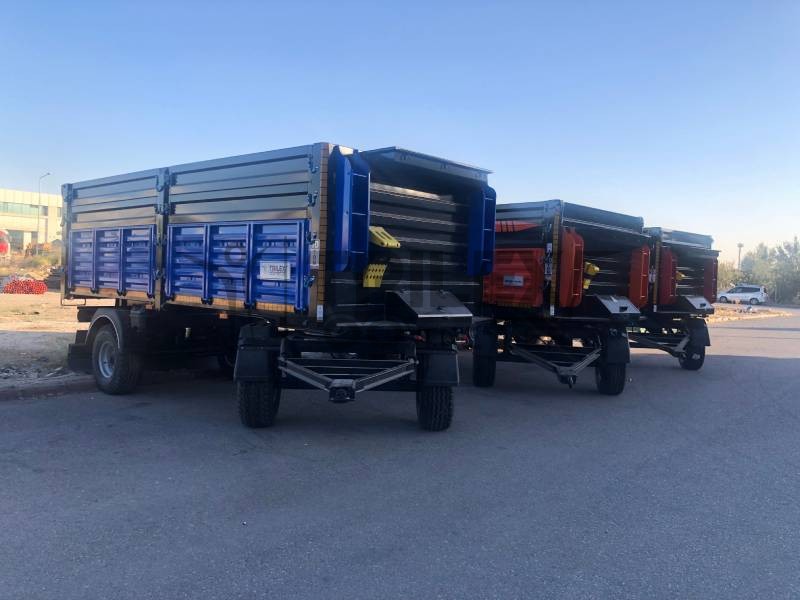

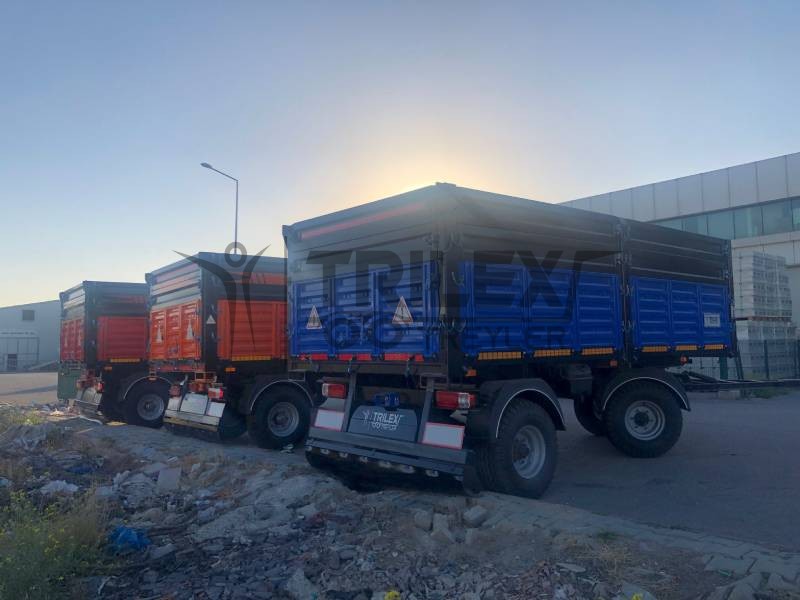

10-ton agricultural / farm tipper tractor trailers with rotating table / turntable is available in 3 different colors (blue, orange, red) and is ready for sale and export. It can be packed in containers and shipped worldwide.

10-TON TRAILER TECHNICAL SPECIFICATIONS

Capacity - Type: 10 Ton Capacity - Agricultural Rear Tipping Trailer

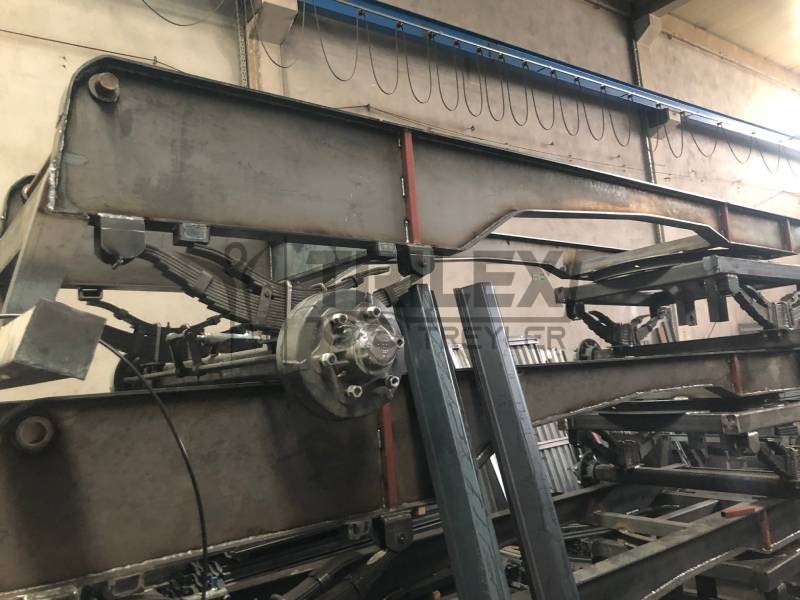

Rotary Arrow / Turntable: The trailer is manufactured with a rotating table assembly

Top Body Dimensions (Width x Length x Height): 2100mm (W) x 4800mm (L) x 1050mm (H)

Case Side Panel Sheets: 2 mm - “ST-37” grade steel sheet

Case Base Plate: 3 mm - “ST-37” grade steel sheet

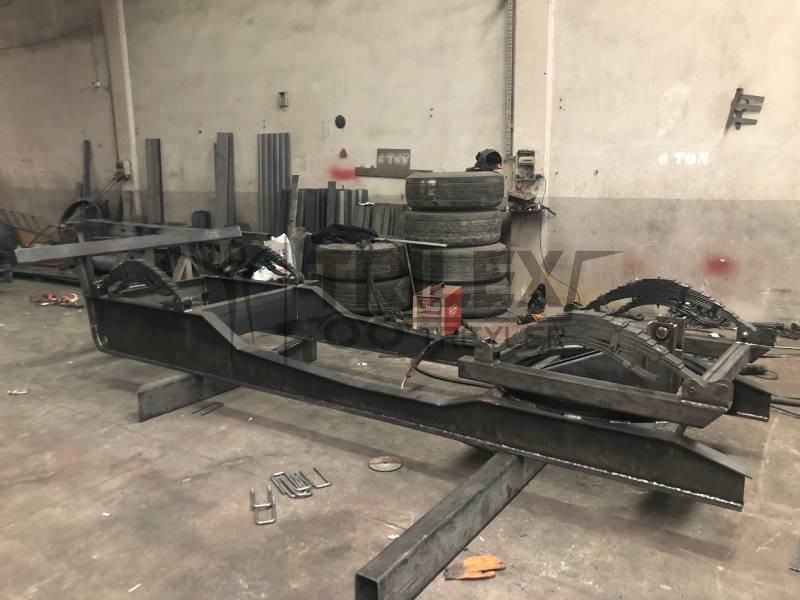

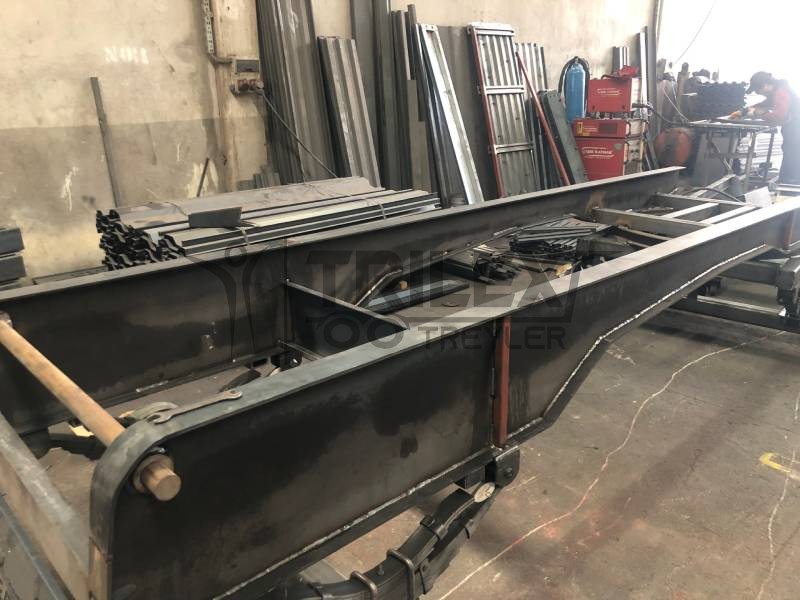

Chassis Mirror Sheet Metal: 5 mm - “ST-52” grade steel sheet

Chassis Bottom/Top Plates: 8 mm - “ST-52” grade steel sheet

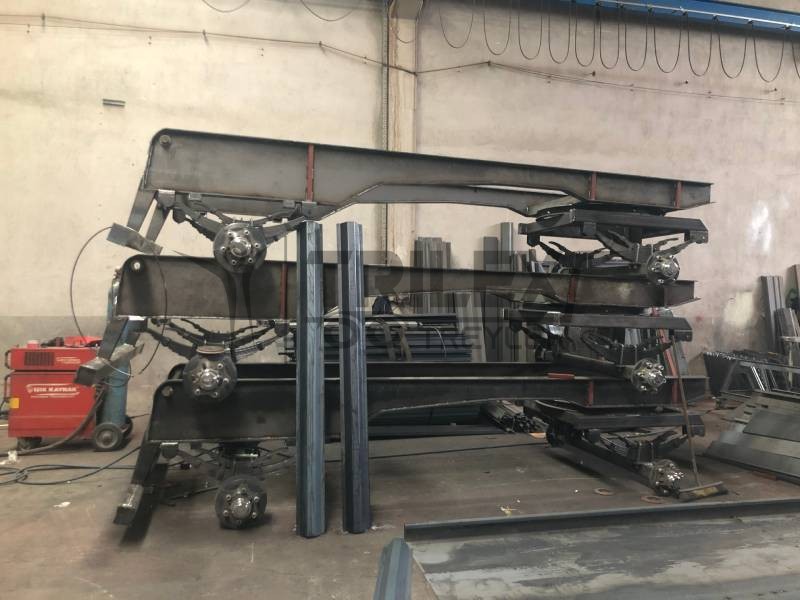

Front Axle: 6,5-ton capacity axle - 11-13 hub, 6 bolts, 32210/32212 bearings

Rear Axle: 6,5-ton capacity axle with brakes - 360/60 brake shoe, 6 bolts, 32210/32212 bearings

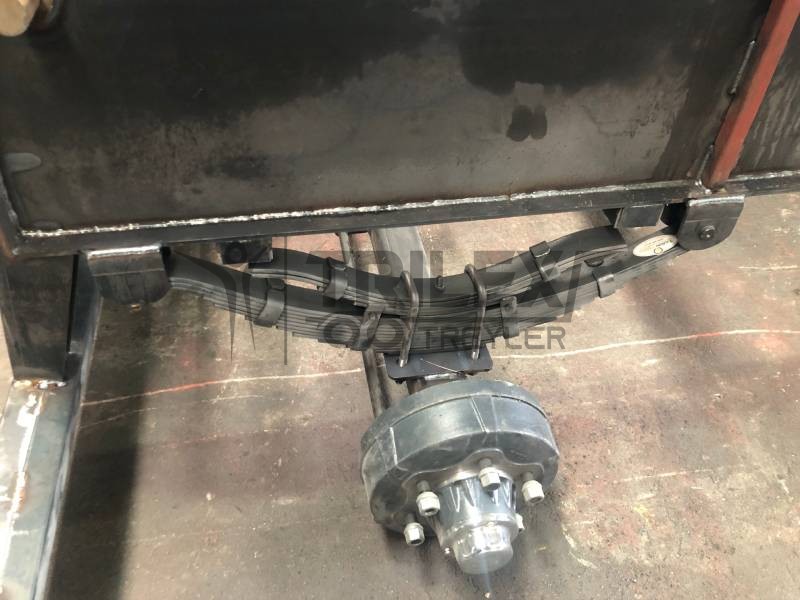

Suspension: 4 pieces of 12+6 ply leaf springs / scissors

Tire Sizes: 11.5/80-15.3 14-Ply Duplex Trailer Tire

Accessories: 4 pieces mudguards, ladder, cover studs, other non-specified as technically trailer accessories that necessary for use will be delivered

Paint / Color: Epoxy primer coat and top acrylic paint coat

* The products will be manufactured entirely from new materials; products are completely ready for customer use and will be delivered to the buyer with all production completed

Semi-trailer / Trailer Owner: These products belong to TRILEX TREYLER and in stock

Delivery Place: Konya / TÜRKİYE
