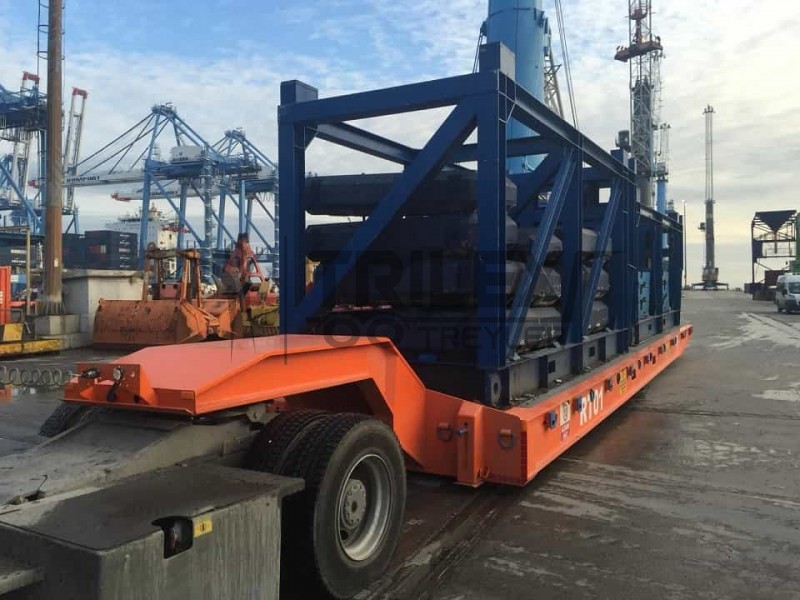

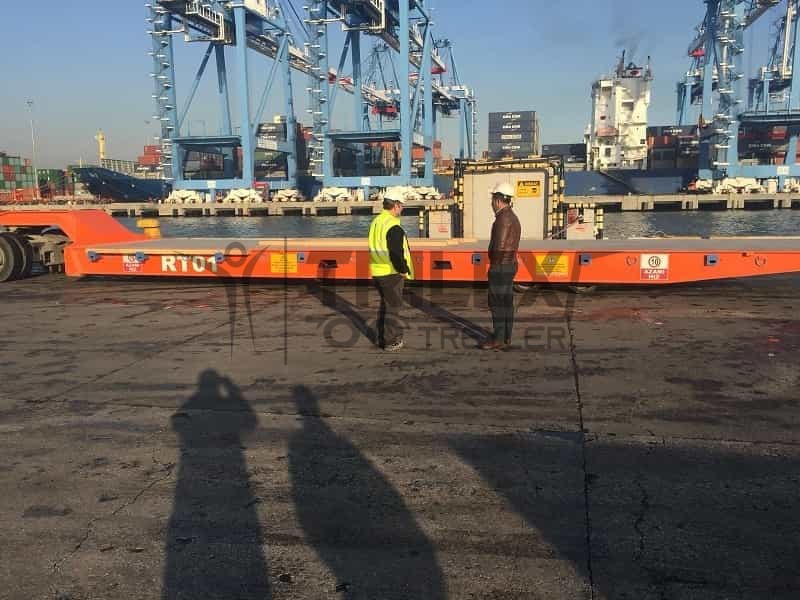

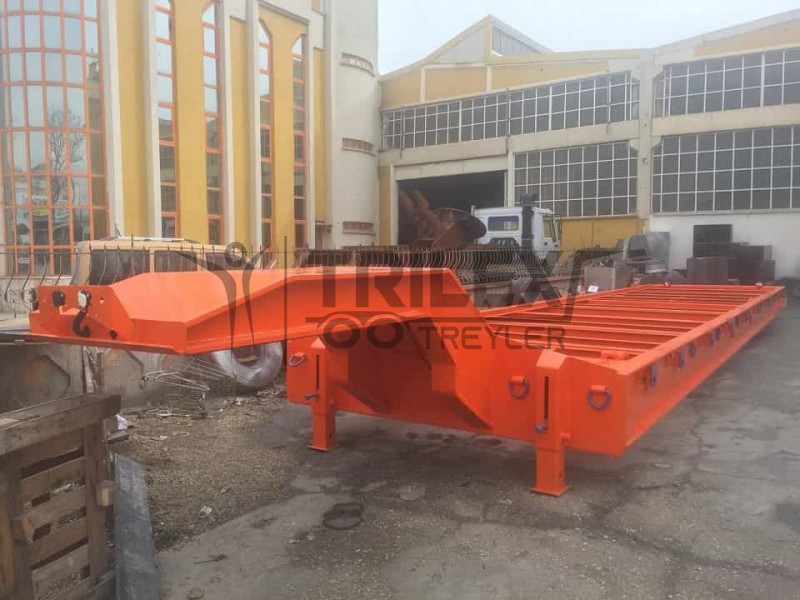

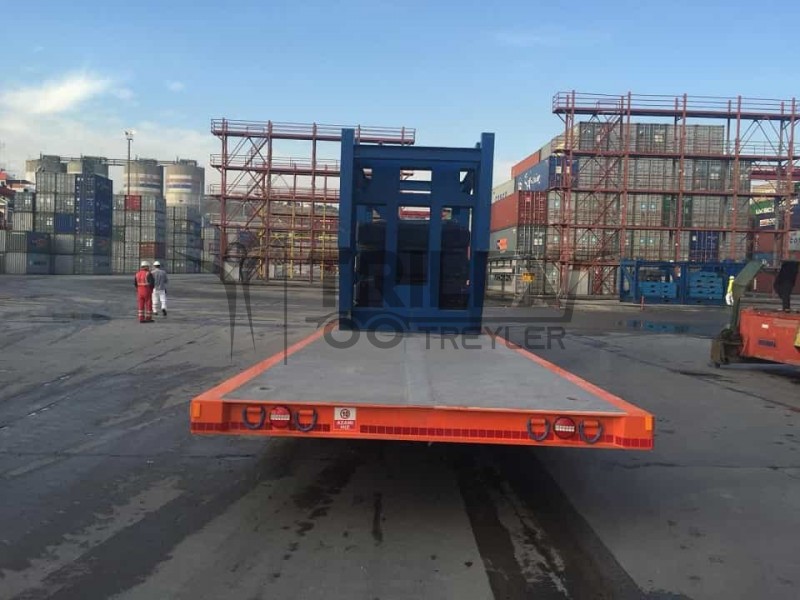

Mafi Cargo Trailer is prefered as a economical and fast means of transportation in industry and ports.

Mafi Type Roll Cargo Trailer is a transport system used in roll - cargo purchase, industrial and marine applications. This trailer is using for standard 20', 30', 40' and 45' container sizes transportation, but can be manufactured with any dimensions options.

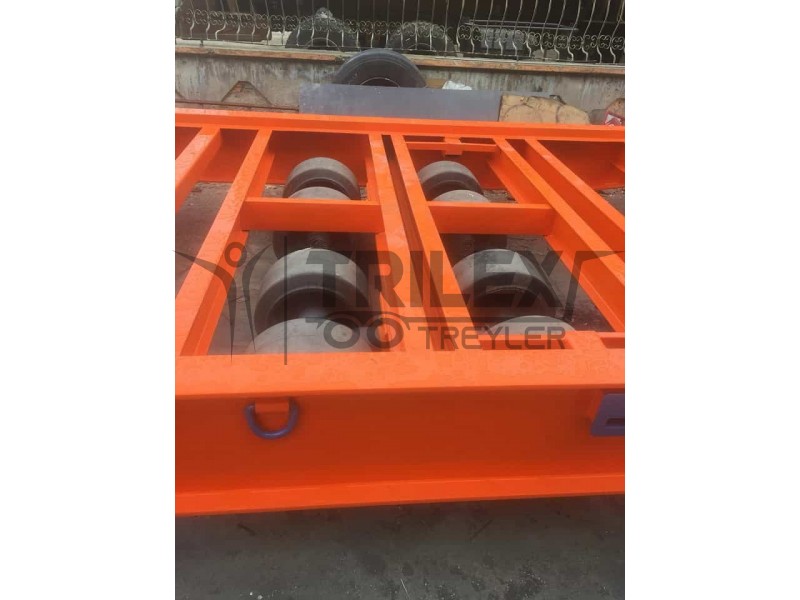

As with other special purposes semi-trailer, this trailer also can produce with special purposes design. Trailer's loading platform can be covered with wood or steel or even without any surface. The support rings, bending locks and lashing rings complement the main purpose. Mafi Cargo Trailer (Roll Cargo trailer) is also used for the transport of steel coils, where bearings can be added.

Since this trailer is very easy to use, its usage in industrial sectors is increasing rapidly. Even, this product provide easy transportation facility for complex product network in low cost.

Advantages of Mafi Type Roll Cargo Trailer:

- Simple operation

- Quick connection

- Robust construction

- High carrying capacity

- Low maintenance cost

- Economical transport and storage

* Please contact with us for technical information


WhatsApp / Viber: +90 543 692 6276 (Mr. Ahmet - M.Sc. Mechatronics Engineer)

TRILEX TREYLER is a foreign trade company and the manufacturer is BÜYÜKYÜKSEL DAMPER HİD. MAK. SAN. LTD. ŞTİ. (Trademark Name: SEMITURK)

Semi Trailer Main Structure
Product Type & ModelMafi Type Terminal / In-Port Cargo Semi-Trailer (Goose Neck Model)
Main Chassis MaterialST-52 or equivalent steel
Chassis Floor MaterialStructurally reinforced sheet base (Optional 'Plywood' floor)
Total Length17.250 mm (Optional design with any size)
Platform Length (Without Gooseneck)14.400 mm (Optional design with any size)
Gooseneck Length2.850 mm (Optional design with any size)
Total Height from Ground1.500 mm (Optional design with any size)
Semi-Trailer Platform Height900 mm (Optional design from 880 mm to 1.100 mm)
Total Width3.000 mm - If side extension brackets available +250 mm +250 mm (Optional design with any size)
Semi Trailer Tare Weight10 Tons (Varies with optional properties design)
Semi Trailer Gross Weight70 Tons (Optionally design in any desired capacity)
Semi-Trailer Axle Specification
Number of Axles2 axles
Axle Brake TypeDrum brake type
Each Axles Capacity20 tons capacity (with max. 30 km/h speed)
Each Sequence Twin/Single WheelTwin wheel (Depends on tire dimension)
Semi Trailer Suspension Equipment
Suspension TypeHeavy duty 14 ply leaf spring suspension (Optional compatible any combination)
Trailer Tires & Rims Specifications
Tire Dimensions10.00-20 Solideal Smooth Filler Tire (Optional any compatible size)
Rim Dimensions7.50 steel rims with standard tire dimension
Total Tire & Rim UnitWith 10.00-20 filler tires, totally 8 units
Semi-Trailer Brake System
Air LineStandard dual circuit brake hardware
Brake SystemAir brake system
Brake Slack AdjustersAutomatic type
Semi-Trailer Electrical Equipment
Electrical Input VoltageStandard 24V, optional 12V
Socket TypeStandard 7, optional 15 pins, Nato type or any type distribution cable
Lighting FunctionsBrake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights
ReflectorsReflector application suitable for traffic regulations
Trailer Electric RegulationECE R 48 (Optional EU 19/249, EEC 24, ADR Norms and Reg.)
OthersOther equipment for traffic regulations
Other Standard Equipment
King-Pin2” bolt-connected, interchangeable with 3½" (D:152 kN - Type: H50-X)
Landing LegsMechanically reinforced feet suitable for heavy loading
Side Extension Brackets18 unit lockable side extension brackets at each sides
Ro-Ro Rings10 + 10 ro-ro connection rings at each sides
Container / Twist LocksTotally 6 unit (20” Container x 2, 40” Container x 1, 45” Container x 1)
Parking Chock with Handle1 set parking chock with handle
Axle Demount Key1 unit axle demount key
