2-inch and 3.5-inch semi-trailer king pin frequently referred to as the “pivot point" between the semi-trailer and truck.

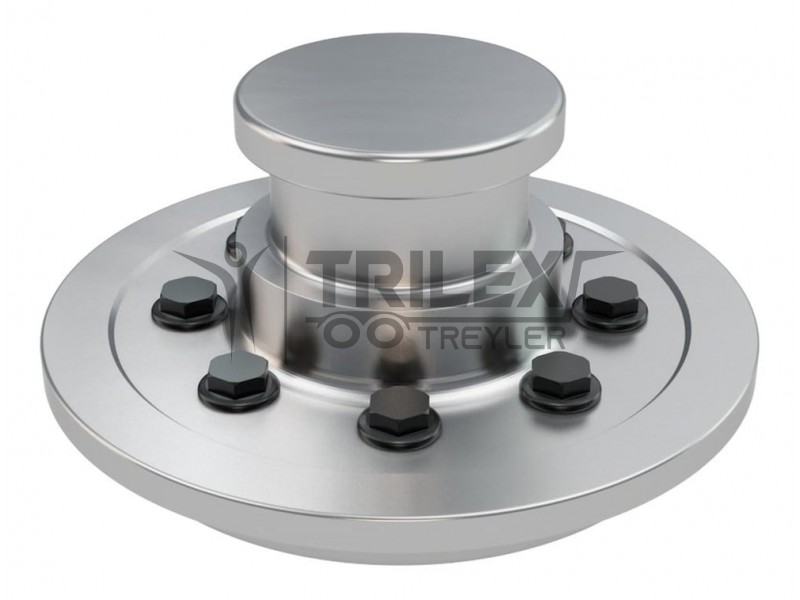

King pin is produced in 2 and 3.5 inch sizes in compliance with SAE/DIN standards. The 2-inch size D value is between 152-190 kN and the 3.5 size D value is up to 260 kN. King pin dimension and capacity values are preferred according to prime mover 5th wheel size and its load capacity.

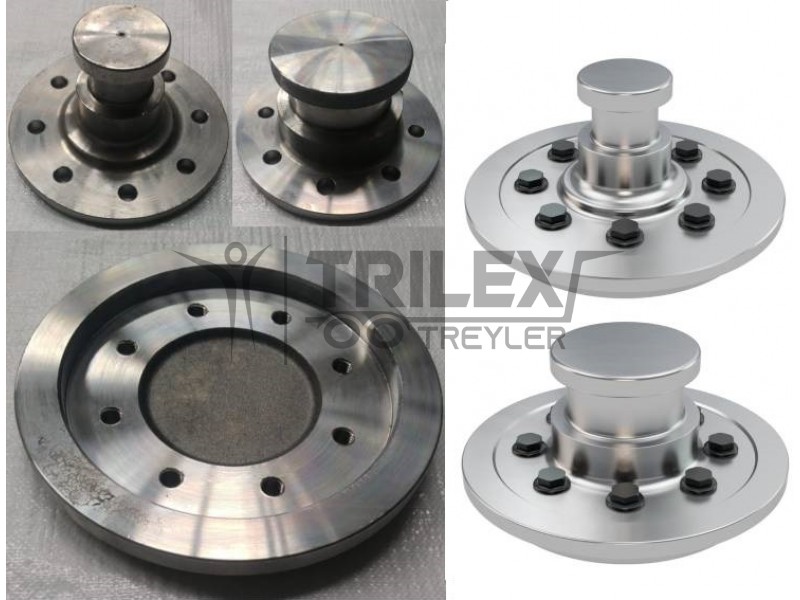

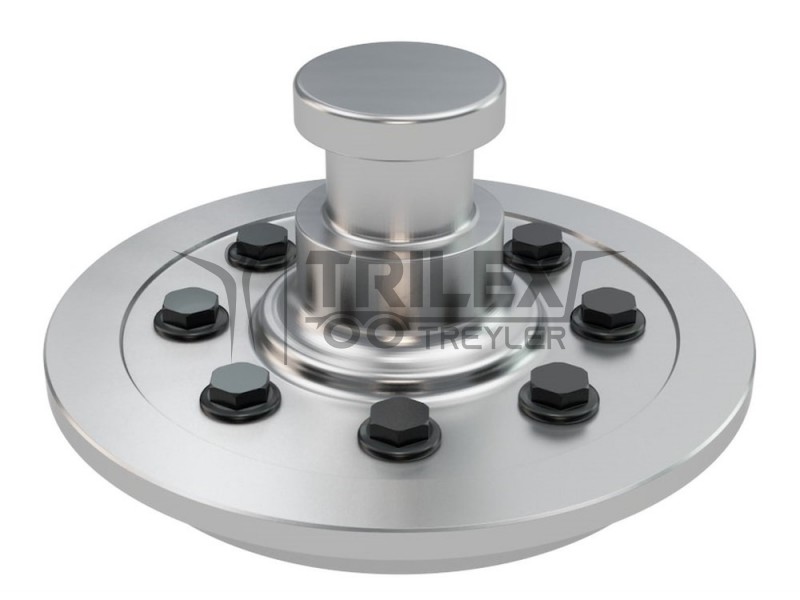

King pins consist of 2 parts: king pin head and mounting bracket. King mounting bracket and king pin head is connected with 8 pcs bolt connection. With the bolt-on mounting bracket structure, 2 inch and 3 inch king pin heads can be easily replaced. With interchangeable 2”-3,5” king pin head structure, the semi-trailer will be easily usable with any prime mover.


"2-inch Semi-Trailer King Pin with Mounting Bracket" - Technical Drawing

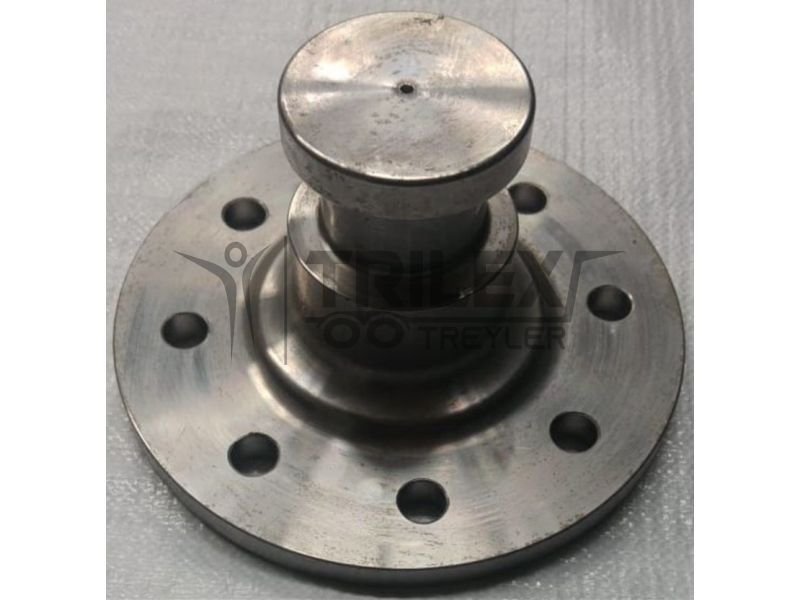

"2-inch Semi-Trailer King Pin Head" - Technical Drawing

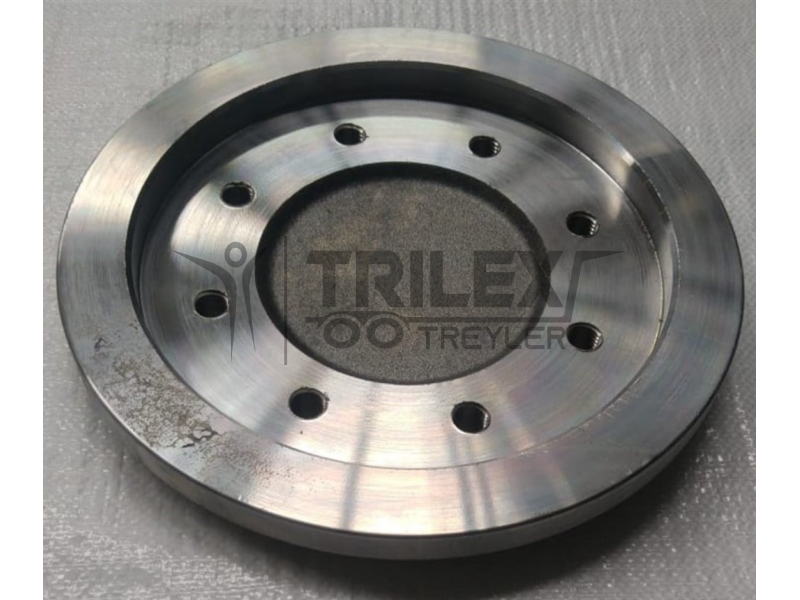

"2-inch Semi-Trailer King Pin Plate" - Technical Drawing

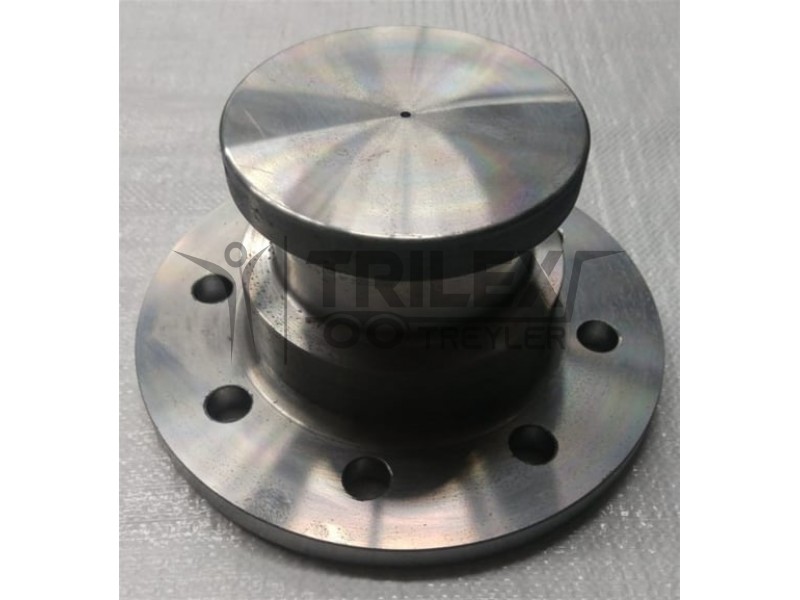

"3,5-inch Semi-Trailer King Pin with Mounting Bracket" - Technical Drawing



Head Dia

2”

2”

2”

3.5”

D-value (Max. kN)

152

175

190

260

Bolt Connection

8

8

8

8

Category

H50-X

H50-X

H50-X

H50-X

Standard

ECE R55

ECE R55

ECE R55

ECE R55

Plate Thickness

8-16 mm

10-12 mm

Material

SAE4140 / DIN 42 CrMo4

Hardness

32 Rockwell-C



ATTENTION: To combine and connect to fifth Whell coupling H50 or H50-x

MOUNTING TO THE TRAILER

1 -   The king pin must be mounted with the related welding plate

2 -   During the welding process pay attention to avoid extreme heat on the pin

3 -   Welding must be minimum 7 mm from both sides

4 -   Fix the pin with a torque of 160 Nm (for 152kN) and 190 Nm (for 175kN) on all 8 bolts, assure the bolt quality of 12.9

* Please request information for higher kN

5 -   Assure the sufficient mechanical resistance of the trailer coupling plate

6 -   The welding must make at once

MAINTENANCE

1 -   The greasing of the pin as the bolt torque and usage diameter must be controlled at least every 15 days

2 -   Use grease with quality least EP 2

3 -   THE PIN HAS TO BE EXCHANGED ON EVERY INDICATION OF DAMAGE DEFORMATION, VISIBLE CRACKS OR VISIBLE USAGE OF SURFACE

(MINUMUM DIAMETER: 50 mm)

ATTENTION!

If the user does not make the mounting and maintenance instructions for king pin 066B according to above requirements, the manufacturer is not responsible for any damage that occurred by wrong mounting and maintenance.
