5 Axles Low-Bed / Low-Boy / Low-Loader Semi-Trailer Main Specifications;
* 5 Axles Flat platform (or optional pool lowbed platform),
* We also produce front-loading 5-axle low loader
* Goose-neck is produced with openable cover
* At the flat floor lowbed platforms, goose-neck ramps is added but this option is not available for lowbed products with pools.
5 Axle LowBed / Low-Boy / Low loader Semi-Trailer Production Materials:
* Low bed trailer base plate is made of 7/8 mm checkered sheet and wheel tops are produced from hard wood according to customer demand,
* Gooseneck reinforced with special alloy steel,
* Chassis is made of “Domex700” material and Telescopic Chassis Extension options are available.

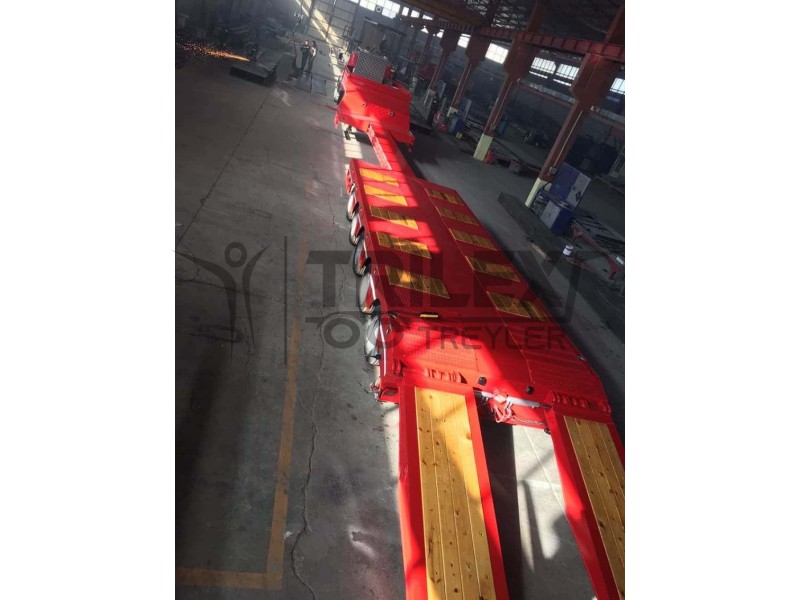

Optional Elongation (Telescopic Chassis Extension) Options:
• 1x6 = 6 meters, • 2x6 = 12 meters, • 3x6 = 18 meters, • 4x6 = 24 meters, telescopic chassis extension options are available.
5 Axles Lowbed Semi-Trailer Dimensions (Changeable according to customer request):
* Overall length: 14,500 mm
* Overall width: 2,850 mm
* Expansion Profiles: 250 + 250 mm (with lock mechanism)
* Length of Loading Place: 10.400 mm
* Empty weight: 13.800 Kg (For Standard product)
* Dimensions may vary according to the new design to be made according to customer demand and usage area requirement. The dimensions given are the dimensions of the standard product.
Axle Hardware & Equipments:
* Totally 5 axles, front 2 axles liftable . Rear 2 axle mechanical steering (optional hydraulic steering) (19 degrees right-left movement)
- Air Suspension Axles (Option used in standard product),
- 235/75 R 17,5 options each with a capacity of 12 tons.
- 295/65 R 22.5 and / or 12 / R 22.5 options each with a capacity of 14 tons.

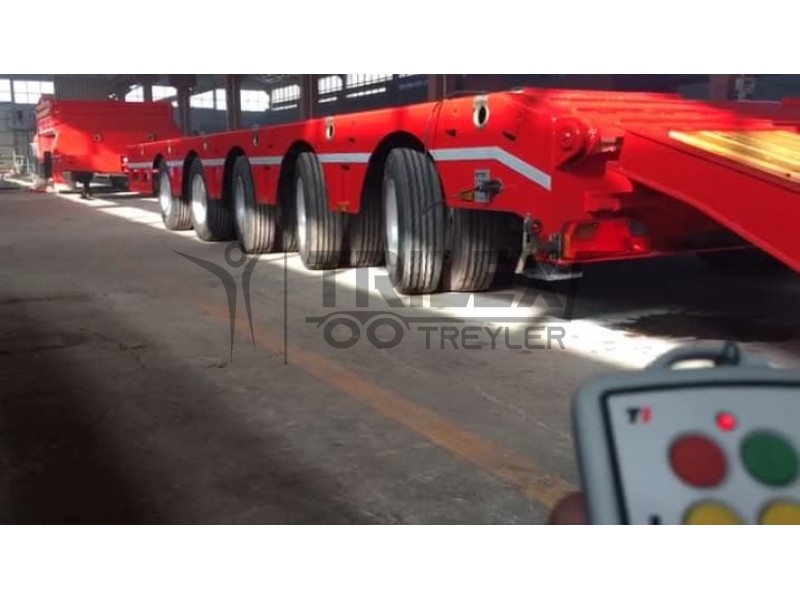

- Optional Hydraulic steering (power steering - steering controlled) is also produced with the option. These axles come with hydraulic suspension and the trailer can be height controlled.
Tire and Rim Options:
* Lassa - Pirelli - Good Year - Optional (Other brand preference)
* 20 Tubeless tires (* Without inner tube, more durable and less likely to burst),
- 235/75 R 17.5 (Option used in standard product)
- 245/70 R 17,5
- 295/60 R 22,5
- 12 R 22,5
- 315/80 R 22,5 dimensions optional
Suspension System and Equipment (All materials are certified and in accordance with EU norms):
* Air suspension system option (Standard product equipment),
- 813 type suspension bellows,
- Parabolic double-deck Z shears are 100 mm,
- Shock absorbers (limiting excessive axle movement),
- Automatic brake adjusters
* Optional Hydraulic suspension option (used with hydraulic steering axles).

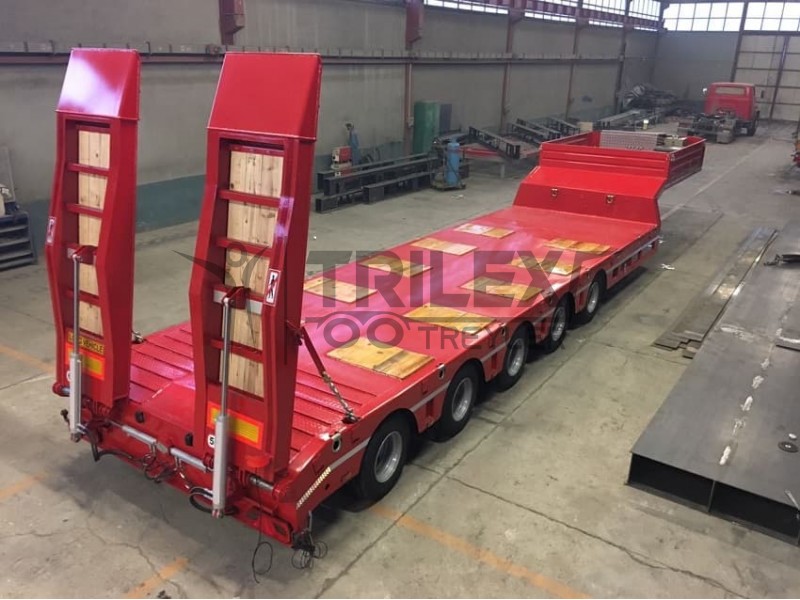

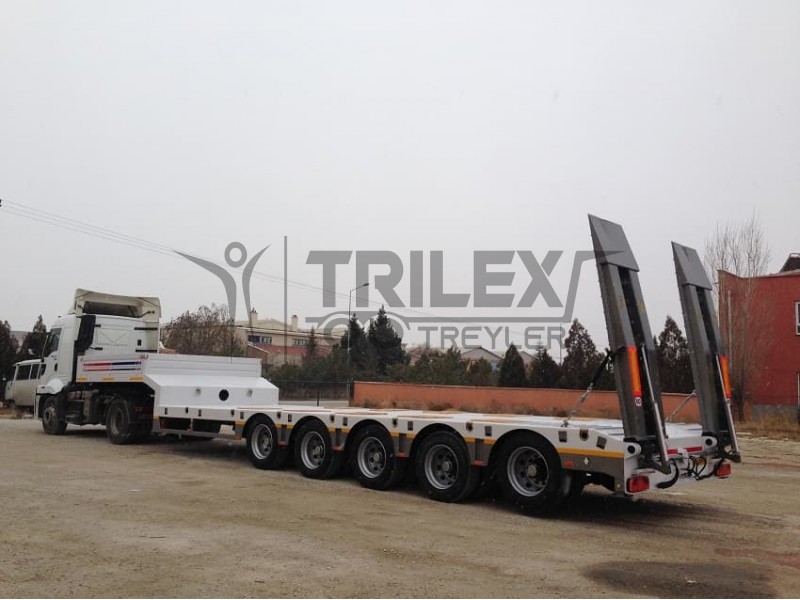

Lowbed Loading Ramp:
- Hydraulically produced (Standard product equipment)
- Optional both hydraulic and mechanic control (for military standard)
- Optional 2 or 4 way direction and foldable (Down & Up - Right & Left)
Electrical Equipment (Standard ASPÖCK or SABA Brand):
* 24 Volt Lighting System,
* 7 or 15 pin distribution cable from the vehicle (Depends on Tow Tractor Model),
* Equipment complying with traffic regulations,
- (Rear parking, stop, signal, side warning lamps, license plate lamps, trailer reflectors)
* Lowbed rear ramp electrical and necessary hardware line,
* Extension & elongation electric line (if extension is available),
* Complies with EEC 24 Certified European norms.
* Complies with SAE standards and TÜV general regulation.
Lowbed Trailer Brake Hardware & Equipment:
* EBS (Electronic-Brake-System) 4S/4M or 4S/3M Braking System is used. Brake system, WABCO or KNORR brand,
* Automatic brake adjuster and brake valve,
* Brake service and emergency brake bellows,
* The equipment used complies with EC standards and European norms.
Not: Extension brake hardware included in 4S/4M EBS set. For example, relay valve and electrical signal accelerator
DIN 74080 standard uses 2 "King Pin and bolt connection. Interchangeable with DIN 74083 standard 3 ½" King Pin - practical replaceable modular construction -
Lowbed Trailer Foot:
* Telescopic, mechanical 2-speed (slow-speed adjustable) trailer foot is used and “S model”,
* Static load capacity is 50 tons and dynamic load capacity is 25 tons.
* In addition, support legs with manual operation are added to the rear of the lowbed semi-trailer.
2 Coats of Epoxy Primer is applied and painted with two layers of Acrylic paint. Vehicle color is determined according to customer request. Colors and patterns preferred by the customer will be applied.
Standard Accessories and Equipment:
- Spare tire holder, - Tool Cabinet (Imported and plastic), - Bicycle Guardrail on 2 Sides,
- Chrome Nickel Water Tank, - Rubber chock and holder, - Ro-Ro Rings (Load Coupling Rings)
- Side opening profiles with locking mechanism (Side Expansion Brackets)
* Pool platform lowbed option,
* Hydraulic steering / suspension option,
* Hydraulic gooseneck,
* Axle lifting options,
* European axle group and all kinds of hardware,
* Double spare wheel carrier,
* Fire extinguisher cabinet and fire tube,
* Optional tire brands,
* Optional RAL color codes.
* Our products are against manufacturing defects
