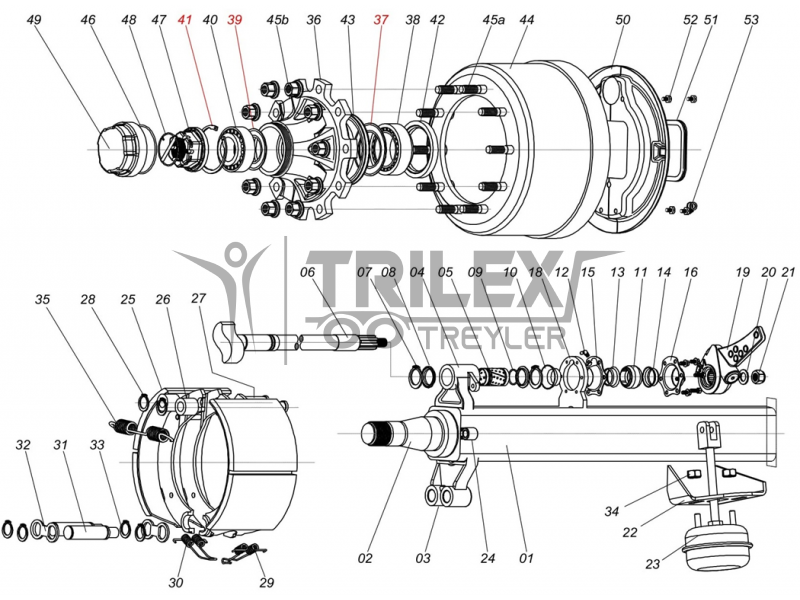

| Air Suspension Axle Spare Parts List | ||||
| Part No | Qty. Each Axle | Drw. No | Part Name | Material |
| DNG-01 | 1 | 1 | Axle Housing | ST-52 |
| DNG-02 | 2 | 2 | Axle | Ç1040 |
| DNG-03 | 2 | 3 | Clutch Disk Joining Bearing | GS45 |
| DNG-04 | 2 | 4 | S Shaft Bearing | GS45 |
| DNG-05 | 2 | 5 | S Shaft Bearing | D |
| DNG-06 | 2 | 6 | S Shaft | D |
| DNG-07 | 4 | 7 | Piston Ring ( For Outer Diameter) | DIN 471 |
| DNG-08 | 4 | 8 | S Shaft Bearing Ring | Ç1040 |
| DNG-09 | 2 | 9 | O-Ring | Disposed |
| DNG-10 | 2 | 10 | S Shaft Bearing Rubber | Rubber |
| DNG-11 | 2 | 11 | Ball-Joint | Disposed |
| DNG-12 | 2 | 12 | Grease Nipple (5/16”) | Disposed |
| DNG-13 | 2 | 13 | Ball-Joint Rubber (Inner) | Rubber |
| DNG-14 | 2 | 14 | Ball-Joint Rubber (Outer) | Rubber |
| DNG-15 | 2 | 15 | Ball-Joint Bearing (Inner) | Ç1040 |
| DNG-16 | 2 | 16 | Ball-Joint Bearing (Outer) | Ç1040 |
| DNG-17 | 6 | 17 | Bolt | Disposed |
| DNG-18 | 2 | 18 | Ball-Joint Sheet | Platine |
| DNG-19 | 2 | 19 | Slack Adjuster | Disposed |
| DNG-20 | 2 | 20 | Washer | Disposed |
| DNG-21 | 2 | 21 | Nut | Disposed |
| DNG-22 | 2 | 22 | Bellows Sheet | Platine |
| DNG-23 | 2 | 23 | Brake Bellows | Disposed |
| DNG-24 | 2 | 24 | Sensor Fold | Pipe |
| DNG-25 | 2 | 25 | Clutch Disk Set | ___ |
| DNG-25a | 4 | 25a | Clutch Disk Metal | Platine |
| DNG-25b | 8 | 25b | Brace | Platine |
| DNG-25c | 8 | 25c | Rowlock | Platine |
| DNG-25d | 80 | 25d | Rivet | Aluminium |
| DNG-25e | 4 | 25e | Brocentensor Spring Holder | Ç1040 |
| DNG-25f | 4+4 | 25f | Clutch Disks | Disposed |
| DNG-26 | 4 | 26 | Roller | Disposed |
| DNG-27 | 4 | 27 | Clutch Disk Pin | Disposed |
| DNG-28 | 4 | 28 | Piston Ring (For Outer Diameter) | Disposed |
| DNG-29 | 2 | 29 | Cotter Spring-1 | Disposed |
| DNG-30 | 2 | 30 | Cotter Spring-2 | Disposed |
| DNG-31 | 4 | 31 | Clutch Disk Joining Pin | Ç1040 |
| DNG-32 | 4 | 32 | Pin Fixing Handle Counter (8 Sheet) | Iron Sheet |
| DNG-33 | 8 | 33 | Piston Ring (Outer Diameter) | Disposed |
| DNG-34 | 4 | 34 | Nut | Disposed |
| DNG-35 | 2 | 35 | Clutch Disk Recoil Spring | Disposed |
| DNG-36 | 2 | 36 | Hub | GGG 60 |
| - | 2 | 37. | Oil Retainer Bearing Cover (Big) (Not Used) | Sheet Metal |
| DNG-38 | 2 | 38 | Big Bearing & Timken: 218248 | Disposed |
| - | 2 | 39. | Oil Retainer Bearing Cover (Small) (Not Used) | Sheet Iron |
| DNG-40 | 2 | 40 | Small Bearing & Timken:33215 | Disposed |
| - | 1 | 41. | Ring (Inner Diameter) (Not Used) | Disposed |
| DNG-42 | 2 | 42 | Bearing Pad | Disposed |
| DNG-43 | 2 | 43 | Sensor Gear | Disposed |
| DNG-44 | 2 | 44 | Drumbrake (420*200) | GG40Ǿ |
| DNG-45 | 20 | 45 | Wheel Nut (Ǿ22*1,5*90) | Disposed |
| DNG-46 | 2 | 46 | O-Ring Washer | Disposed |
| DNG-47 | 2 | 47 | Axle Nut | GGG 60 |
| DNG-48 | 2 | 48 | Nut Pin (Axle Nut) | GGG 60 |
| DNG-49 | 2 | 49 | Hub-Cap | Aluminium |
| DNG-50 | 2 | 50 | Gaiter Sheet | Disposed |
| DNG-51 | 2 | 51 | Gaiter Pad | Disposed |
| DNG-52 | 2 | 52 | Bolt | Disposed |
| DNG-53 | 2 | 53 | Sensor Cable Clamp | Disposed |
